ADUM5404: Quad-Channel Isolators with Integrated DC/DC Converter
The ADuM5401/ADuM5402/ADuM5403/ADuM54041 devices are quad-channel digital isolators with isoPower®, an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc., iCoupler® technology, the dc-to-dc converter provides up to 500 mW of regulated, isolated power at either 5.0 V from a 5.0 V input supply or 3.3 V from a 3.3 V supply. This eliminates the need for a separate, isolated dc-to-dc converter in low power, isolated designs. The iCoupler chip scale transformer technology is used to isolate both the logic signals and the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.
The ADuM5401/ADuM5402/ADuM5403/ADuM5404 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide for more information).
isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to Application Note AN-0971 for details on board layout considerations.
Applications
- RS-232/RS-422/RS-485 transceivers
- Industrial field bus isolation
- Power supply startup bias and gate drives
- Isolated sensor interfaces
- Industrial PLCs
ADUM5404 特点
- isoPower™ 集成隔离DC-DC转换器
- 3 V或5 V可调整输出
- 500 mW输出功率
- 四路DC-25 Mbps（NRZ）信号隔离通道
- 施密特触发器输入
- 16引脚SOIC封装,爬电距离 > 8mm
- 最高工作温度：105°C
- 高共模瞬态抑制：> 25 kV/µs
- 安全管理认证（正在审批）
UL认证
2500 V rms/min,符合UL 1577
CSA元件验收通知 #5A
VDE符合证书
DIN V VDE V 0884-10 (VDE V 0884-10)：2006-12
VIORM = 560 V peak

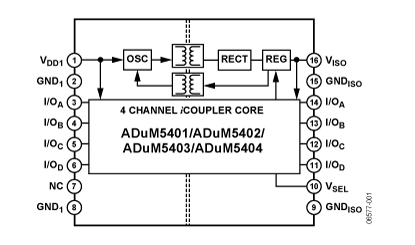

ADUM5404 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADUM5404ARWZ | 量产 | 16 | 工业 | |
| ADUM5404ARWZ-RL | 量产 | 16 | 工业 | |
| ADUM5404CRWZ | 量产 | 16 | 工业 | |
| ADUM5404CRWZ-RL | 量产 | 16 | 工业 |
