ATICE200 AVR在线仿真器

The AVR ICE 200 Surface Mount Adapter Kit is used together with an ICE 200. It is a low cost solution to in-circuit emulation on designs using SMD versions of the AVR family of microcontrollers. It replaces expensive third party emulation adapters. The ICE200 In-Circuit Emulator provides an easy way of debugging embedded systems that utilizes the Atmel AVR microcontroller. It emulates eleven different devices of the AVR and the tinyAVR™ families. The philosophy of the ICE200 is to provide an easy-to-use debugging platform, with a minimum of differences between the emulator and the actual processor it is emulating. The AVR emulator chip used by the ICE200 is produced in the same process technology as the microcontroller it is emulating. This provides identical electrical characteristics. On-board debugging resources ensure non-intrusive software emulation. The ICE200 hardware also includes an automatic configuration system that makes the process of connecting the target to the emulator an easy task. ATMEL AVR 系列单片机是具有精简指令集多累加器型的新型嵌入式单片机,数据处理速度极快,内部有A/D,也有I/O 比较作A/D 输人用,具有看门狗及省电方式;片内FLASH及EEPROM 存贮器的设计,令产品更易(ISP)升级;而其理想的抗干扰性能更使它被广泛地应用在家电工控医疗通讯等领域。

AVR ICE200 仿真器特性:
  1. Devices Supported：ATtiny12, AT90S2313, AT90S2333/4433, AT90S4414/8515, AT90S4434/8535,ATtiny10/11 (using ATtiny12 adapter), AT90S1200 (using AT90S2313 adapter).
  2. Supports 8 MHz (+4.0V to +6.0V) AVR Emulator Chip (varies between devices being emulated).
  3. Wide Target Voltage Range (+2.7V to +5.5V).
  4. Emulator Chip Provides Excellent AC Characteristics.
  5. Non-intrusive.
  6. Target Voltage Sensing Ensures Secure Operation.
  7. Personality Adapter for Each of the Supported Processors.
  8. 32-bits Cycle Counter.
  9. I/O Continues to Operate in Halt State After a Break or Break Point.
  10. Single-stepping or Continuous Timer Operation while Single-stepping Code. Utilizes the AVR Studio Debugging Environment that adds: Full Run Time Control: run, break, trace into, step over, step out, run-to-cursor, reset, autostep and multistep.
  11. Unlimited Number of Break Points.
  12. Symbolic Debugging Support.
  13. Full Visibility of and Access to Register File, SP, PC, and Memories.
  14. Access to all I/O Registers – See Section 5: “Special Considerations”.
  15. Auto Log Points – Non-real Time Logging/Watches.
  16. 可仿AT90S4414/8515,AT90S4434/8535,AT90S2333/4433,AT90S2313/1200,ATtiny10/11/12 单片机;考虑到AVR 封装有8 20 28 40Pin 等,ICE 200 已提供全部对应的Adapter适配板;
  17. 使用ATMEL的专用仿真CPU,故令仿真器做到全空间实时仿真,具有全透明的仿真调试环境;
  18. 具有单步连续单步实时运行中断跟踪复位符号调试等功能;
  19. 软件工作平台为WIN95/98/NT,支持汇编及C 语言;所有软件可在互联网上免费获得;支持8MHz
ATICE200 仿真器支持器件

AT90S1200，AT90S2313，AT90S4433，AT90S8515，AT90S8535

ATICE200 应用技术支持与电子电路设计开发资源下载
  1. ATICE200 用户手册下载 / ATICE200 使用说明书下载 . PDF
  2. AVR244: AVR UART as ANSI Terminal Interface（用AVR UART作为标准终端接口注意事项） . PDF
  3. http://www.atmel.com/dyn/resources/prod_documents/AVR244.zip

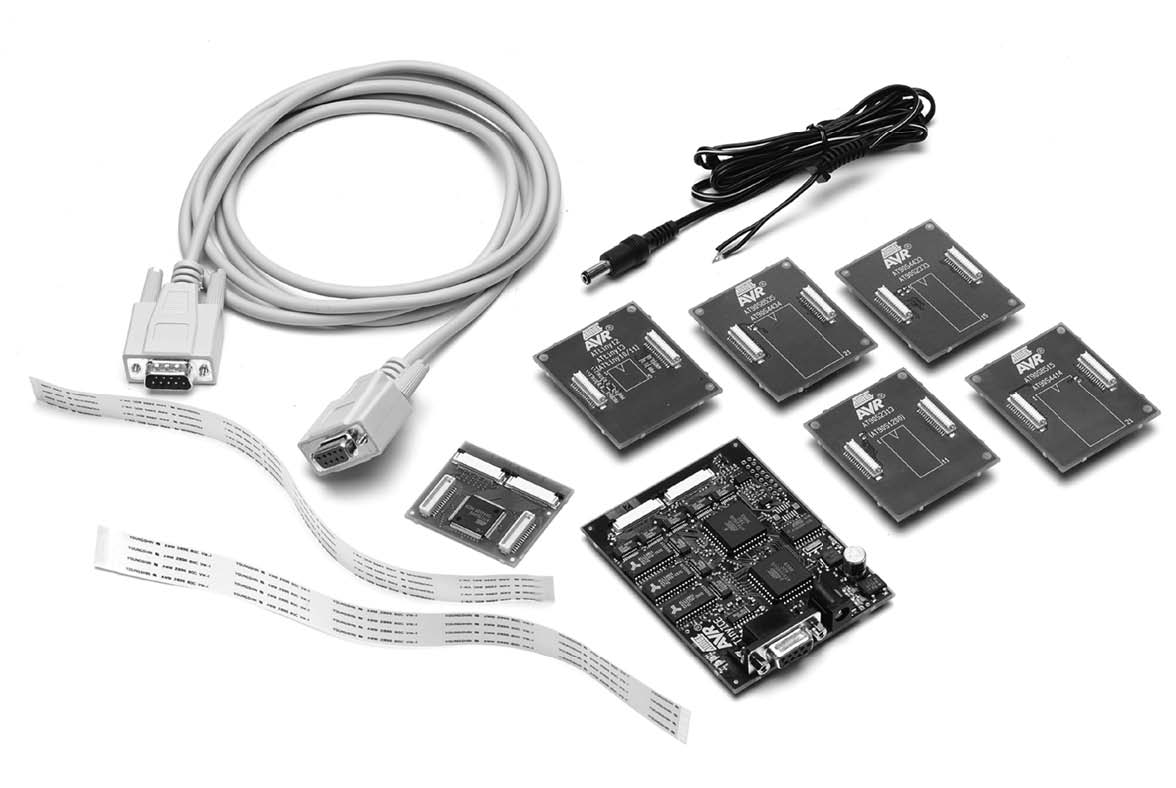

  4. ATICE200 AVR在线仿真器产品图像 . jpg

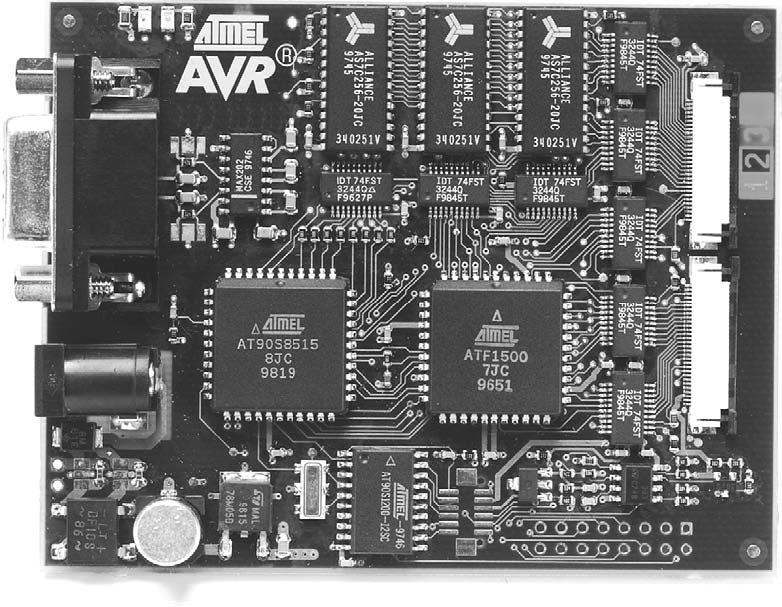

  5. ATICE200 AVR在线仿真器主板图像 . jpg
  6. ATMEL 爱特梅尔半导体公司产品线. PDF (编号:Atmel Products)
  7. AVR 8-Bit RISC 产品参数表
  8. Atmel 爱特梅尔AVR 微控制器简介.PDF (编号:Tech AVR 000)
  9. 面向新手的AVR开发工具,及基本知识.PDF(编号:Tech AVR 001)
  10. 使用AVR 定时/计数器的PWM功能设计要点 .PDF
ATICE200 翻译文档

AVR040 EMC 设计
AVR042 AVR硬件设计
AVR053 校正内部RC振荡器
AVR101 高效持久的 EEPROM 存储
AVR104 缓存和中断方式EEPROM写入
AVR105 高效持久保存参数到 Flash
AVR106 读写Flash程序空间的C函数
AVR109 自编程
AVR120 ADC校正和说明
AVR121 使用过采样增加ADC精度
AVR230 DES Bootloader
AVR236 程序空间的CRC校验
AVR244  用AVR UART作为标准终端接口
AVR304  半双工中断方式软件UART
AVR305  紧凑的半双工软件串口
AVR307  使用USI做半双工UART
AVR309  软件通用串行总线(USB)
AVR318  Dallas 1-Wire 主控制器
AVR400  低成本A／D转换器
AVR401  8位AD转换器
AVR450* 为SLA、NiCd、NiMH 和Li-Ion 电池设计的充电器
AVR910  在系统编程
AVR911  AVR 的开源编程器
