SPX2940 1A 低漏失电压调节器
The SPX2940 is a 1A, accurate voltage regulators with a low drop out voltage of 280mV (typical) at 1A. These regulators are specifically designed for low voltage applications that require a low dropout voltage and a fast transient response. They are fully fault protected against overcurrent, reverse battery, and positive and negative voltage transients. The SPX2940 is offered in 3-pin TO-220 & TO- 263 packages. For a 3A version, refer to the SPX29300 data sheet.
技术特性
- Guaranteed 1.5A Peak Current
- Low Quiescent Current
- Low Dropout Voltage of 280mV at 1A
- Extremely Tight Load and Line Regulation
- Extremely Fast Transient Response
- Reverse-battery Protection
- Internal Thermal Protection
- Internal Short Circuit Current Limit
- Replacement for LM2940, MIC2940A, AS2940
- Standard TO-220 and TO-263 packages
- 5.0V Fixed Output
应用领域 APPLICATION
- Power Supplies
- LCD Monitors
- Portable Instrumentation
- Medical and Industrial Equipments
技术指标
| 输出电流(mA) |
1000 |
| 最低输入电压(V) |
3.2 |
| 最高输入电压(V) |
16 |
| 静态电流(µA) |
12000 |
| 精确性 |
3% |
| 漏失电压 |
280 |
| 输出电压1.2V |
否 |
| 输出电压1.5V |
否 |
| 输出电压1.8V |
是 |
| 输出电压2.0V |
否 |
| 输出电压2.5V |
是 |
| 输出电压2.7V |
否 |
| 输出电压2.85V |
否 |
| 输出电压2.8V |
否 |
| 输出电压3.0V |
否 |
| 输出电压3.3V |
是 |
| 输出电压3.5V |
否 |
| 输出电压5.0V |
是 |
| 输出电压可调 |
否 |
|
订购信息 Ordering Information
| 器件型号 |
有害物质限制 |
最低温度 |
最高温度 |
状态 |
立刻购买 |
申请样片 |
| SPX2940T-L-5-0 |
|
-40 |
125 |
运行 |
|
|
| SPX2940T-L-5-0/TR |
|
-40 |
125 |
运行 |
|
|
| SPX2940U-1-8 |
|
|
|
运行 |
|
|
| SPX2940T-L-2-5/TR |
|
-40 |
125 |
运行 |
|
|
| SPX2940T-L-3-3 |
|
-40 |
125 |
运行 |
|
|
| SPX2940T-L-3-3/TR |
|
-40 |
125 |
运行 |
|
|
| SPX2940U-2-5 |
|
|
|
运行 |
|
|
| SPX2940U-L-3-3 |
|
-40 |
125 |
返修 |
|
|
| SPX2940U-L-5-0 |
|
-40 |
125 |
运行 |
|
|
| SPX2940U-L-1-8 |
|
|
|
OBS |
|
|
| SPX2940U-3-3 |
|
-40 |
125 |
运行 |
|
|
| SPX2940U-5-0 |
|
-40 |
125 |
运行 |
|
|
| SPX2940U-L-2-5 |
|
-40 |
125 |
OBS |
|
|
| SPX2940T-L-2-5 |
|
-40 |
125 |
运行 |
|
|
| SPX2940T-1-8/TR |
|
|
|
运行 |
|
|
| SPX2940JT-L-5-0 |
|
-40 |
125 |
EOL |
|
|
| SPX2940T-2-5 |
|
-40 |
125 |
运行 |
|
|
| SPX2940JT-L-5-0/TR |
|
-40 |
125 |
EOL |
|
|
| SPX2940JU-L-3-3 |
|
-40 |
125 |
EOL |
|
|
| SPX2940T-1-8 |
|
|
|
OBS |
|
|
| SPX2940T-2-5/TR |
|
|
|
运行 |
|
|
| SPX2940T-5-0/TR |
|
-40 |
125 |
运行 |
|
|
| SPX2940T-L-1-8 |
|
-40 |
125 |
运行 |
|
|
| SPX2940T-L-1-8/TR |
|
|
|
运行 |
|
|
| SPX2940T-3-3 |
|
-40 |
125 |
运行 |
|
|
| SPX2940T-3-3/TR |
|
|
|
运行 |
|
|
| SPX2940T-5-0 |
|
-40 |
125 |
运行 |

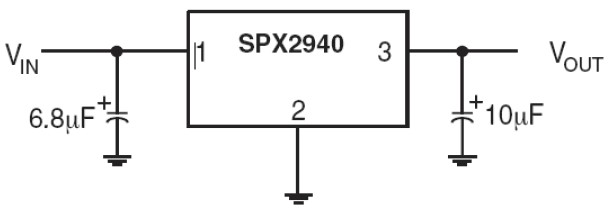

功能框图 Functional Block Diagram
|
