SPX3940 1.0A 低漏失线性调节器（LDO)
The SPX3940 is a 1A, accurate voltage regulator with a low drop out voltage of 280mV(typ.) at1A. These regulators are specifically designed for low voltage applications that require a lowdropout voltage and a fast transient response. They are fully fault protected against over-current,reverse battery, and positive and negative voltage transients. The SPX3940 is offered in 5-pinTO-220 & TO-263 packages. For a 3A version, refer to the SPX29300 data sheet.
技术特性
- Adjustable Output Down To 1.25V
- Low Quiescent Current
- Guaranteed 1.5A Peak Output Current
- Low Dropout Voltage of 280mV @ 1A
- Extremely Tight Load and Line Regulation
- Extremely Fast Transient Response
- Reverse-battery Protection
- Internal Thermal and Current Limit Protection
- Zero Current Shutdown
- Standard TO-220 and TO-263 packages
技术指标
| 输出电流(mA) |
1000 |
| 最低输入电压(V) |
3.1 |
| 最高输入电压(V) |
16 |
| 静态电流(µA) |
18000 |
| 精确性 |
2% (不带-A 的型号);1% (带A 的型号) |
| 漏失电压 |
280 |
| 输出电压1.2V |
False |
| 输出电压1.5V |
否 |
| 输出电压1.8V |
是 |
| 输出电压2.0V |
否 |
| 输出电压2.5V |
是 |
| 输出电压2.7V |
否 |
| 输出电压2.85V |
否 |
| 输出电压2.8V |
否 |
| 输出电压3.0V |
否 |
| 输出电压3.3V |
是 |
| 输出电压3.5V |
否 |
| 输出电压5.0V |
是 |
| 输出电压可调 |
否 |
应用领域 APPLICATION
- 1% 输出精准SPX3940A
- 稳定的1.5A 峰值电流
- 低静态电流
- 低压差1A时为280mV
- 极紧凑装载和线性调节
- 超快的瞬间响应
- 逆流电池/反接保护
- 内部短路保护 限流
- 可替代LM3940
- 标准的SOT-223, TO-220 及TO-263 封装

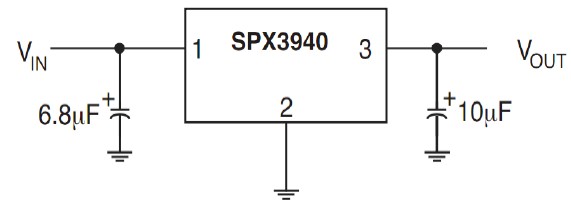

功能框图 Functional Block Diagram
|
