XRT7295AT DS3/STS-1 Integrated Line Receiver

The XRT7295AT device is manufactured using linear CMOS technology. The XRT7295AT is available in a 20-pin plastic SOJ package for surface mounting. Two versions of the chip are available, one is for either DS3 or STS-1 operation (the XRT7295AT, this data sheet), and the other is for E3 operation (the XRT7295AE, refer to the XRT7295AE data sheet). Both versions are pin compatible

技术特性
  • Fully Integrated Receive Interface for DS3 and STS-1 Rate Signals
  • Integrated Equalization (Optional) and Timing Recovery
  • Loss-of-Signal and Loss-of-Lock Alarms
  • Variable Input Sensitivity Control
  • 5V Power Supply
  • Pin Compatible with XRT7295AE and XRT7295AC
  • Companion Device to T7296 Transmitter
  • Pb-Free, RoHS Compliant Versions Offered
应用领域 APPLICATION
  • Interface to DS-3 Networks
  • Digital Cross-Connect Systems
  • CSU/DSU Equipment
  • PCM Test Equipment
  • Fiber Optic Terminals
订购信息 Ordering Information
器件型号 有害物质限制 最低温度 最高温度 状态 立刻购买 申请样片
XRT7295ATIV -40 85 Active



技术指标
频道数量 1
数据传输速率(s) DS3/STS-1
Clk Rec Yes
短途/长途 n/a
温度.范围 Ind.
OpPwr Sup/Max Cur 5V ±5%, 106mA
封装 SOJ-20, PDIP-20
功能框图 Functional Block Diagram

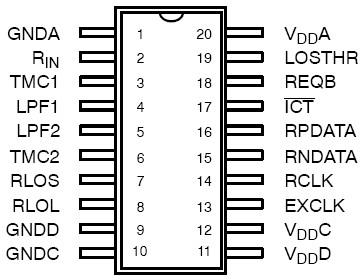

XRT7295AT 功能框图
