技术特性

• Receiver:

  • On chip Clock and Data Recovery circuit for high input jitter tolerance

  • Detects and Clears LOS as per G.775

  • Receiver Monitor mode handles up to 20 dB flat loss with 6 dB cable attenuation

  • On chip B3ZS/HDB3 encoder and decoder that can be either enabled or disabled

  • On-chip Clock Synthesizer generates the appropriate rate clock from a single frequency Crystal

  • Provides low jitter clock outputs for either E3, DS3 or STS-1 rates

  • Meets Jitter Tolerance Requirements, as specified in ITU-T G.823_1993 for E3 Applications

  • Meets Jitter Tolerance Requirements, as specified in Bellcore GR-499-CORE for DS3 Applications
  Transmitter:

  • Compliant with Bellcore GR-499, GR-253 and ANSI T1.102 Specification for transmit pulse

  • Tri-state Transmit output capability for Redundancy applications

  • Transmitters can be turned on or off
  Control and Diagnostics:

  • Parallel Microprocessor Interface for control and configuration

  • Supports optional internal Transmit Driver Monitoring

  • PRBS Error Counter Register to accumulate errors

  • Supports Local, Remote and Digital Loop-backs

  • Single 3.3 V ± 5% power supply

  • 5 V Tolerant I/O

  • Maximum Power Dissipation 2.5W.

  • Available in 208 pin QFP package

  • -40°C to 85°C Industrial Temperature Range

  • Pb-Free, RoHS Compliant Versions Offere

技术指标

应用领域 APPLICATION

• E3/DS3 Access Equipment

• STS1-SPE to DS3 Mapper

• DSLAMs

• Digital Cross Connect Systems

• CSU/DSU Equipment

• Routers

• Fiber Optic Terminals

订购信息 Ordering Information

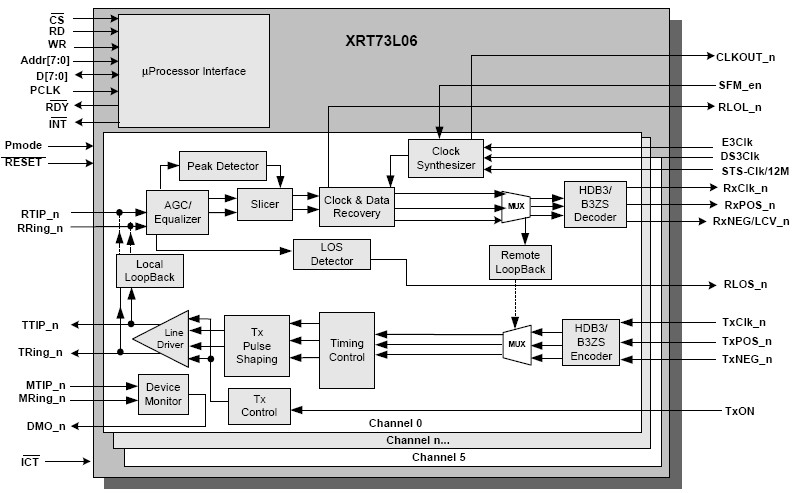

功能框图 Functional Block Diagram
