Intel 英特尔865GV 南北桥芯片组 JG82865GV

The Intel JG82865GV chipset, designed for the Intel Pentium D processor (compatible with the lead free version of Intel 865G Chipsets supporting socket LGA775) and the Intel Pentium 4 processor supporting Hyper-Threading (HT) Technology, is a highly scalable solution that meets a range of demanding computing needs. The JG82865GV chipset offers solid performance through a variety of exciting features, including dual-channel DDR 400 main memory, 800 MHz system bus, and integrated graphics controller with Intel Extreme Graphics 2 technology.

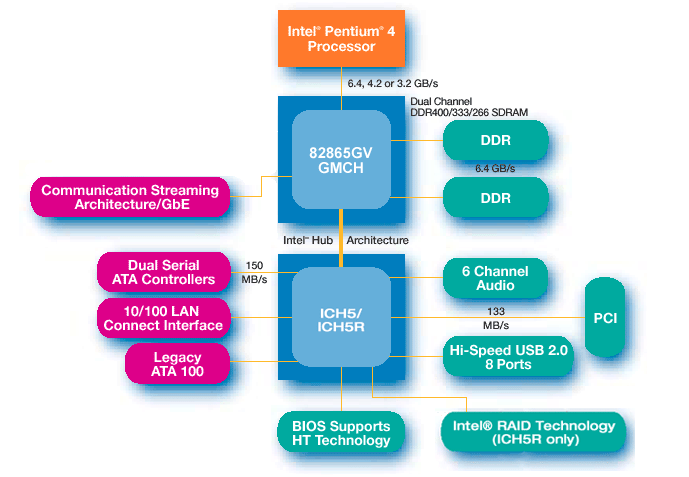

• View Chipset System Diagram

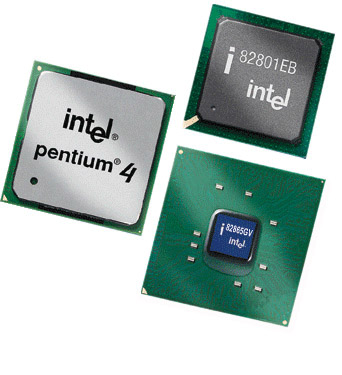

• View ProductImage

JG82865GV 特性

1. 800/533/400 MHz system bus：Platform longevity with support for Intel Pentium D processor 805 and 820 sequence, delivering improved system bandwidth.
2. Supports Hyper-Threading Technology：Delivers increased system responsiveness and performance.
3. Intel Extreme Graphics 2 technology：Fourth-generation graphics architecture supports the latest APIs, allowing software developers to create real-life environments and characters.
4. Intel Accelerated Hub Architecture：Dedicated data paths deliver increased bandwidth for I/O-intensive applications.
5. Dual-Channel DDR 400/333/266 SDRAM：Flexible memory technology allows a full spectrum of DDR usage from incredible performance to more cost-effective systems.
6. Integrated High-speed USB 2.0：Eight ports offer up to 40x greater bandwidth over USB 1.1 for a variety of today's demanding high-speed I/O peripherals.
7. Dual independent Serial ATA controllers：Facilitates high-speed storage transfers and easy hard drive upgrades.
8. Intel RAID technology [PDF 260 KB]：Enables extreme storage performance for Serial ATA hard disks.
9. Ultra ATA /100：Takes advantage of the existing industry HDD and optical drive interfaces.
10. AC '97 controller：Supports Dolby Digital 5.1 surround sound1, delivering up to six channels of enhanced sound quality.
11. Intel Communication Streaming Architecture：Wire-speed GbE with Dedicated Network Bus (DNB) for performance network connectivity.
12. Low-power sleep mode：Saves energy.

JG82865GV 相关产品

Processors	Intel Pentium D processor Intel Pentium 4 processor supporting Hyper-Threading Technology Intel Celeron D processor
Chipsets	Intel 865G, 865PE and 865P Chipsets
Desktop Boards	Intel Desktop Boards D865PERL, D865PERC and D865PESO

JG82865GV 相关封装形式

Product	Package
Intel Pentium 4 Processor	478 Flip Chip Pin Grid Array (FCPGA)
Intel JG82865GV memory controller hub	932 Flip Chip Ball Grid Array (FCBGA)
Intel 82801EB (ICH5)/82801ER (ICH5R)	460 Micro Ball Grid Array (BGA)

Look for systems with the Intel Pentium 4 Processor with HT Technology and also including an Intel 955, 945, 925, 915 or 910 Express Chipset, or Intel 865 Chipset (see the product spec sheet or ask your salesperson). Performance and functionality will vary depending on (i) the specific hardware and software you use and (ii) the feature enabling/system configuration by your system vendor. See www.intel.com/products/ht/hyperthreading_more.htm for information on HT Technology or consult your system vendor for more information.
1 Separate license may be required; contact vendor for details.

Intel processors and/or chipsets may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

JG82865GV 技术资料：

Intel 英特尔 JG82865GV 芯片组 南北桥芯片 JG82865GV Datasheet技术资料下载 . PDF
