LT1585A-3.3 7A, 4.6A, 3A Low Dropout Fast Response Positive Regulators Adjustable and Fixed
The LT™1584/LT1585/LT1587 are low dropout threeterminal regulators with 7A, 4.6A and 3A output current capability, respectively. Design has been optimized for low voltage applications where transient response and minimum input voltage are critical. Similar to the LT1083/4/5 family, it has lower dropout voltage and faster transient response. These improvements make it ideal for low voltage microprocessor applications requiring a regulated 2.5V to 3.6V output with an input supply below 7V.
Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload that would create excessive junction temperatures.
The LT1585/LT1587 are available in both the through-hole and surface mount versions of the industry standard 3-pin TO-220 power package. The LT1584 is available in the through-hole 3-pin TO-220 power package.
产品特点 Features
参数 |
应用

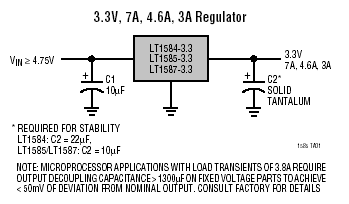

典型应用图 |
LT1585A-3.3 订购信息和价格参考Package Variations and Pricing
| 器件型号 | 封装 | 引脚 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) * |
| LT1585ACM-1.5 | DD PAK | 3 | C | $5.40 | $4.45 |
| LT1585ACM-1.5#PBF | DD PAK | 3 | C | $5.40 | $4.45 |
| LT1585ACM-1.5#TR | DD PAK | 3 | C | $4.57 | |
| LT1585ACM-1.5#TRPBF | DD PAK | 3 | C | $4.57 | |
| LT1585ACT | TO-220 | 3 | C | $5.00 | $4.10 |
| LT1585ACT#PBF | TO-220 | 3 | C | $5.00 | $4.10 |
| LT1585ACT-1.5 | TO-220 | 3 | C | $5.00 | $4.10 |
| LT1585ACT-1.5#PBF | TO-220 | 3 | C | $5.00 | $4.10 |
| LT1585ACT-3.3 | TO-220 | 3 | C | $5.00 | $4.10 |
| LT1585ACT-3.3#PBF | TO-220 | 3 | C | $5.00 | $4.10 |
| LT1585CM | DD PAK | 3 | C | $5.15 | $4.20 |
| LT1585CM#PBF | DD PAK | 3 | C | $5.15 | $4.20 |
| LT1585CM#TR | DD PAK | 3 | C | $4.33 | |
| LT1585CM#TRPBF | DD PAK | 3 | C | $4.33 | |
| LT1585CM-1.5 | DD PAK | 3 | C | $5.15 | $4.20 |
| LT1585CM-1.5#PBF | DD PAK | 3 | C | $5.15 | $4.20 |
| LT1585CM-1.5#TR | DD PAK | 3 | C | $4.33 | |
| LT1585CM-1.5#TRPBF | DD PAK | 3 | C | $4.33 | |
| LT1585CM-3.3 | DD PAK | 3 | C | $5.15 | $4.20 |
| LT1585CM-3.3#PBF | DD PAK | 3 | C | $5.15 | $4.20 |
| LT1585CM-3.3#TR | DD PAK | 3 | C | $4.33 | |
| LT1585CM-3.3#TRPBF | DD PAK | 3 | C | $4.33 | |
| LT1585CM-3.38 | DD PAK | 3 | C | $5.15 | $4.20 |
| LT1585CM-3.38#PBF | DD PAK | 3 | C | $5.15 | $4.20 |
| LT1585CM-3.45 | DD PAK | 3 | C | $5.15 | $4.20 |
| LT1585CM-3.45#PBF | DD PAK | 3 | C | $5.15 | $4.20 |
| LT1585CM-3.45#TR | DD PAK | 3 | C | $4.33 | |
| LT1585CM-3.45#TRPBF | DD PAK | 3 | C | $4.33 | |
| LT1585CM-3.6 | DD PAK | 3 | C | $5.15 | $4.20 |
| LT1585CM-3.6#PBF | DD PAK | 3 | C | $5.15 | $4.20 |
| LT1585CT | TO-220 | 3 | C | $4.75 | $3.85 |
| LT1585CT#PBF | TO-220 | 3 | C | $4.75 | $3.85 |
| LT1585CT-1.5 | TO-220 | 3 | C | $4.75 | $3.85 |
| LT1585CT-1.5#PBF | TO-220 | 3 | C | $4.75 | $3.85 |
| LT1585CT-3.3 | TO-220 | 3 | C | $4.75 | $3.85 |
| LT1585CT-3.3#PBF | TO-220 | 3 | C | $4.75 | $3.85 |
| LT1585CT-3.38 | TO-220 | 3 | C | $4.75 | $3.85 |
| LT1585CT-3.38#PBF | TO-220 | 3 | C | $4.75 | $3.85 |
| LT1585CT-3.45 | TO-220 | 3 | C | $4.75 | $3.85 |
| LT1585CT-3.45#PBF | TO-220 | 3 | C | $4.75 | $3.85 |
| LT1585CT-3.6 | TO-220 | 3 | C | $4.75 | $3.85 |
| LT1585CT-3.6#PBF | TO-220 | 3 | C | $4.75 | $3.85 |
LT1585A-3.3 数据手册及相关资料下载
- 数据手册(英文) : LT1584/LT1585/LT1587 - 7A, 4.6A, 3A Low Dropout Fast Response Positive Regulators.PDF
- 应用指南 (英文) : AN66 - linear Technology Magazine Circuit Collection, Volume II.PDF
- 设计要点 (英文) : DN122 - Dual Regulators Power Pentium® Processor or Upgrade CPU.PDF
- 设计要点 (英文) : DN87 - Fast Regulator Paces High Performance Processors.PDF
- 设计要点 (英文) : DN90 - High Efficiency Power Sources for Pentium TM Processors.PDF
- 设计要点 (英文) : DN91 - 5V to 3.3V Circuit Collection.PDF
- 可靠性数据 : R385 Reliability Data .PDF
