LT1674 2µA Max, AV >=5 Single, Dual and Quad Over-The-Top Precision Rail-to-Rail Input and Output Op Amps

The LT®1672/LT1673/LT1674 are ultralow power (IS <=2µA) decompompensated (AV >=5) op amps with precision specifications. The extremely low supply current is combineed with excellent amplifier specifications: input offset voltage is 375µV maximum with atypicaal drift of only 0.4µV/°C, input offset current is 100pA maximum. A minimum open-loop gain (AVOL) of 100V/mV ensures that gain errors are small. The devices' characteristics change little over the supply range of 2.2V to ±15V. Supply rejection is 90dB and the common mode rejection ratio is 90dB. Operation is specified for 3V, 5V and ±15V supplies. Reverse battery protection (-18V min) and inputs that operate above the positive supply make the LT1672/LT1673/LT1674 easy to use in harsh environments.

The low bias currents and offset current of the amplifier permit the use of megohm level source resistors without introducing significant errors. Voltage noise at 4µVP-P is remarkably low considering the low supply current. For unity gain stable versions of these amplifiers, see the LT1494/LT1495/LT1496.

The LT1672 is available in the 8-pin MSOP, PDIP and SO packages. The LT1673 is available in plastic 8-pin PDIP and SO-8 packages with the standard dual op amp pinout. The LT1674 is available in 14-pin PDIP and SO packages

产品特点 Features
  • Gain of 5 Stable
  • Low Supply Current: 2µA Max per Amplifier
  • Rail-to-Rail Input and Output
  • Low Offset Voltage: 375µV Max
  • Over-The-Top™ Inputs Operate Above V+
  • Gain Bandwidth Product: 12kHz
  • Wide Supply Range: 2.2V to 36V
  • Single Supply Input Range: -0.3V to 36V
  • Low Input Bias Current: 250pA
  • Low Input Offset Current: 20pA
  • High AVOL : 100V/mV Minimum Driving 100kOhms Load
  • Output Sources and Sinks 500µA Load Current
  • Reverse Battery Protected to 18V
应用
  • Battery- or Solar-Powered Systems
  • Portable Instrumentation
  • Remote Sensor Amplifier
  • Micropower Filter
  • Photodiode Amplifier
  • High Impedance Circuits
典型应用图

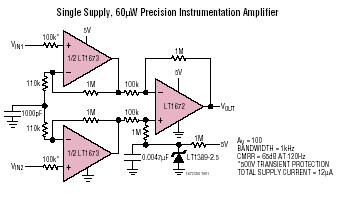

LT1674 典型应用
参数
LT1674 参数
LT1674 订购信息和价格参考Package Variations and Pricing
器件型号 封装 引脚 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量) *
LT1674CN PDIP 14 C $4.15  $3.25
LT1674CN#PBF PDIP 14 C $4.15  $3.25
LT1674CS SO 14 C $4.30  $3.35
LT1674CS#PBF SO 14 C $4.30  $3.35
LT1674CS#TR SO 14 C $3.41
LT1674CS#TRPBF SO 14 C $3.41
LT1674IN PDIP 14 I $4.95  $3.85
LT1674IN#PBF PDIP 14 I $4.95  $3.85
LT1674IS SO 14 I $5.05  $3.95
LT1674IS#PBF SO 14 I $5.05  $3.95
LT1674IS#TR SO 14 I $4.01
LT1674IS#TRPBF SO 14 I $4.01
LT1674 数据手册及相关资料下载
  1. 数据手册(英文) : LT1672/3/4 - 2µA Max, Av >=5 Single, Dual and Quad Over-The-Top Precision Rail-to-Rail Input and Output Op Amps.PDF
  2. 可靠性数据 : R334 Reliability Data .PDF
