LTC1343 Software-Selectable Multiprotocol Transceiver
The LTC®1343 is a 4-driver/4-receiver multiprotocol transceiver that operates from a single 5V supply. Two LTC1343s form the core of a complete software-selectable DTE or DCE interface port that supports the RS232, RS449, EIA-530,EIA-530-A, V.35, V.36 or X.21 protocols. Cable termination may be implemented using the LTC1344 software-selectable cable termination chip or by using existing discrete designs. The LTC1343 runs from a single 5V supply using an internal charge pump that requires only five space saving surface mount capacitors. The mode pins are latched internally to allow sharing of the select lines between multiple interface ports. Software-selectable echoed clock and loop-back modes help eliminate the need for external glue logic between the serial controller and line transceiver. The part features a flow-through architecture to simplify EMI shielding and is available in the 44-lead SSOP surface mount package
产品特点 Features
- Software-Selectable Transceiver Supports: RS232, RS449, EIA-530, EIA-530-A, V.35, V.36, X.21
- NET1 and NET2 Compliant
- Software-Selectable Cable Termination Using the LTC1344
- 4-Driver/4-Receiver Configuration Provides a Complete 2-Chip DTE or DCE Port
- Operates from Single 5V Supply
- Internal Echoed Clock and
Loop-Back Logic
参数
 |
应用
- Data Networking
- CSU and DSU
- Data Routers

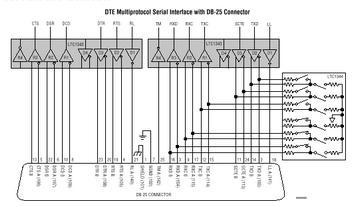

典型应用图
 |
LTC1343 订购信息和价格参考Package Variations and Pricing
| 器件型号 |
封装 |
引脚 |
温度 |
价格 (以 1 ~ 99 片为批量) |
价格 (以 1000 片为批量) * |
| LTC1343CGW |
SSOP |
44 |
C |
$15.65 |
$12.60 |
| LTC1343CGW#PBF |
SSOP |
44 |
C |
$15.65 |
$12.60 |
| LTC1343CGW#TR |
SSOP |
44 |
C |
|
$12.70 |
| LTC1343CGW#TRPBF |
SSOP |
44 |
C |
|
$12.70 |
| LTC1343IGW |
SSOP |
44 |
I |
$16.60 |
$13.50 |
| LTC1343IGW#PBF |
SSOP |
44 |
I |
$16.60 |
$13.50 |
| LTC1343IGW#TR |
SSOP |
44 |
I |
|
$13.60 |
| LTC1343IGW#TRPBF |
SSOP |
44 |
I |
|
$13.60 |
LTC1343 数据手册及相关资料下载
- 数据手册 (英文) : LTC1343 - Software-Selectable Multiprotocol Transceiver.PDF
- 应用指南 (英文) : AN87 - linear Technology Magazine Circuit Collection, Volume V: Data Conversion, Interface and Signal Conditioning Products.PDF
- 可靠性数据 : R277 Reliability Data .PDF
- 产品选型卡 : LTC2870/LTC2871/LTC2872 Multiprotocol Transceivers.PDF
