LTC1421 Hot Swap Controller
The LTC®1421/LTC1421-2.5 are Hot Swap™ controllers that allow a board to be safely inserted and removed from a live backplane. Using external N-channel pass transistors, the board supply voltages can be ramped up at a programmable rate. Two high side switch drivers control the N-channel gates for supply voltages ranging from 3V to 12V.
A programmable electronic circuit breaker protects agianst shorts. Warning signals indicate that the circuit breaker has tripped, a power failure has occurred or that the switch drivers are turned off. The reset output can be used to generate a system reset when the power cycles or a fault occurs. The two connect inputs can be used with staggered connector pins to indicate board insertion or removal. The power-on reset input can be used to cycle the board power or claer the circuit breaker.
The trip point of the ground sense comparator is set at 0.1V for LTC1421 and 2.5V for LTC1421-2.5.
The LTC1421/LTC1421-2.5 are available in 24-pin SO and SSOP packages
产品特点 Features
参数 |
应用

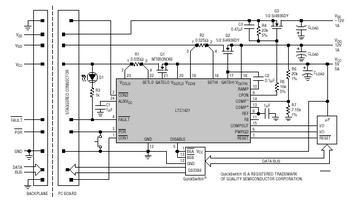

典型应用图 |
LTC1421 订购信息和价格参考Package Variations and Pricing
| 器件型号 | 封装 | 引脚 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) * |
| LTC1421CG | SSOP | 24 | C | $6.90 | $5.20 |
| LTC1421CG#PBF | SSOP | 24 | C | $6.90 | $5.20 |
| LTC1421CG#TR | SSOP | 24 | C | $5.30 | |
| LTC1421CG#TRPBF | SSOP | 24 | C | $5.30 | |
| LTC1421CG-2.5 | SSOP | 24 | C | $6.90 | $5.20 |
| LTC1421CG-2.5#PBF | SSOP | 24 | C | $6.90 | $5.20 |
| LTC1421CG-2.5#TR | SSOP | 24 | C | $5.30 | |
| LTC1421CG-2.5#TRPBF | SSOP | 24 | C | $5.30 | |
| LTC1421CSW | SO | 24 | C | $6.40 | $4.90 |
| LTC1421CSW#PBF | SO | 24 | C | $6.40 | $4.90 |
| LTC1421CSW#TR | SO | 24 | C | $5.00 | |
| LTC1421CSW#TRPBF | SO | 24 | C | $5.00 | |
| LTC1421CSW-2.5 | SO | 24 | C | $6.40 | $4.90 |
| LTC1421CSW-2.5#PBF | SO | 24 | C | $6.40 | $4.90 |
| LTC1421CSW-2.5#TR | SO | 24 | C | $5.00 | |
| LTC1421CSW-2.5#TRPBF | SO | 24 | C | $5.00 | |
| LTC1421IG | SSOP | 24 | I | $7.15 | $5.95 |
| LTC1421IG#PBF | SSOP | 24 | I | $7.15 | $5.95 |
| LTC1421IG#TR | SSOP | 24 | I | $6.05 | |
| LTC1421IG#TRPBF | SSOP | 24 | I | $6.05 | |
| LTC1421IG-2.5 | SSOP | 24 | I | $7.15 | $5.95 |
| LTC1421IG-2.5#PBF | SSOP | 24 | I | $7.15 | $5.95 |
| LTC1421IG-2.5#TR | SSOP | 24 | I | $6.05 | |
| LTC1421IG-2.5#TRPBF | SSOP | 24 | I | $6.05 | |
| LTC1421ISW | SO | 24 | I | $6.60 | $5.65 |
| LTC1421ISW#PBF | SO | 24 | I | $6.60 | $5.65 |
| LTC1421ISW#TR | SO | 24 | I | $5.75 | |
| LTC1421ISW#TRPBF | SO | 24 | I | $5.75 | |
| LTC1421ISW-2.5 | SO | 24 | I | $6.60 | $5.65 |
| LTC1421ISW-2.5#PBF | SO | 24 | I | $6.60 | $5.65 |
| LTC1421ISW-2.5#TR | SO | 24 | I | $5.75 | |
| LTC1421ISW-2.5#TRPBF | SO | 24 | I | $5.75 |
LTC1421 数据手册及相关资料下载
- 数据手册(英文) : LTC1421/LTC1421-2.5 - Hot Swap Controller.PDF
- 设计要点 (英文) : DN139 - Safe Hot Swapping Using the LTC1421.PDF
- 设计要点 (英文) : DN145 - New Voltage References Are Smaller and More Precise.PDF
- 可靠性数据 : R568 Reliability Data .PDF
- 产品选型卡 : High Voltage Surge Stoppers.PDF
