LTC1609 16-Bit, 200ksps, Serial Sampling ADC

The LTC®1609 is a 200ksps, serial sampling 16-bit A/D converter that draws only 65mW (typical) from a single 5V supply. This easy-to-use device includes a sample-and- hold, a precision reference, a switched capacitor successive approximation A/D and trimmed internal clock.

The input range is specified for bipolar inputs of ±10V, ±5V and ±3.3V and unipolar inputs of 0V to 10V, 0V to 5V and 0V to 4V. Maximum DC specs include ±2LSB INL and 16-bit no missing codes overtemperature. It has a typical signal-to-noise ratio of 87dB.

The ADC has a high speed serial interface. The serial output data can be clocked out using either the internal serial shift clock or be clocked out by an external shift clock. A separate convert start input(R/C) and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors

产品特点 Features Sample Rate: 200ksps Input Ranges Unipolar: 0V to 10V, 0V to 5V and 0V to 4V Bipolar: ±10V, ±5V and ±3.3V Guaranteed No Missing Codes Serial I/O Single 5V Supply Power Dissipation: 65mW Typ Power Down Mode: 50µW SNR: 87dB Typ Operates with Internal or External Reference 28-Pin SSOP and 20-Pin SSO Packages Improved 2nd Source to ADS7809 and AD977A 封装	应用 Industrial Process Control Multiplexed Data Acquisition Systems High Speed Data Acquisition for PCs Digital Signal Processing 典型应用图参数

产品特点 Features

Sample Rate: 200ksps
Input Ranges
Unipolar: 0V to 10V, 0V to 5V and 0V to 4V Bipolar: ±10V, ±5V and ±3.3V
Guaranteed No Missing Codes
Serial I/O
Single 5V Supply
Power Dissipation: 65mW Typ
Power Down Mode: 50µW
SNR: 87dB Typ
Operates with Internal or External Reference
28-Pin SSOP and 20-Pin SSO Packages
Improved 2nd Source to ADS7809 and AD977A

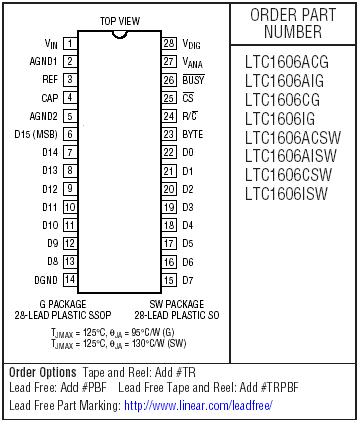

封装

应用

Industrial Process Control
Multiplexed Data Acquisition Systems
High Speed Data Acquisition for PCs
Digital Signal Processing

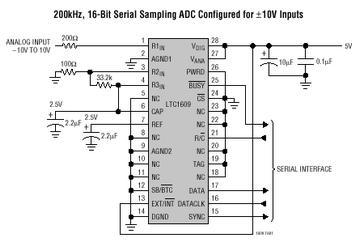

典型应用图

参数

LTC1609 订购信息和价格参考Package Variations and Pricing

器件型号	封装	引脚	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量) *
LTC1609ACG	SSOP	28	C	$30.10	$25.50
LTC1609ACG#PBF	SSOP	28	C	$30.10	$25.50
LTC1609ACG#TR	SSOP	28	C		$25.60
LTC1609ACG#TRPBF	SSOP	28	C		$25.60
LTC1609ACSW	SO	28	C	$30.10	$25.50
LTC1609ACSW#PBF	SO	28	C	$30.10	$25.50
LTC1609ACSW#TR	SO	28	C		$25.60
LTC1609ACSW#TRPBF	SO	28	C		$25.60
LTC1609AIG	SSOP	28	I	$31.80	$26.95
LTC1609AIG#PBF	SSOP	28	I	$31.80	$26.95
LTC1609AIG#TR	SSOP	28	I		$27.05
LTC1609AIG#TRPBF	SSOP	28	I		$27.05
LTC1609AISW	SO	28	I	$31.80	$26.95
LTC1609AISW#PBF	SO	28	I	$31.80	$26.95
LTC1609AISW#TR	SO	28	I		$27.05
LTC1609AISW#TRPBF	SO	28	I		$27.05
LTC1609CG	SSOP	28	C	$23.00	$19.50
LTC1609CG#PBF	SSOP	28	C	$23.00	$19.50
LTC1609CG#TR	SSOP	28	C		$19.60
LTC1609CG#TRPBF	SSOP	28	C		$19.60
LTC1609CSW	SO	28	C	$23.00	$19.50
LTC1609CSW#PBF	SO	28	C	$23.00	$19.50
LTC1609CSW#TR	SO	28	C		$19.60
LTC1609CSW#TRPBF	SO	28	C		$19.60
LTC1609IG	SSOP	28	I	$24.30	$20.60
LTC1609IG#PBF	SSOP	28	I	$24.30	$20.60
LTC1609IG#TR	SSOP	28	I		$20.70
LTC1609IG#TRPBF	SSOP	28	I		$20.70
LTC1609ISW	SO	28	I	$24.30	$20.60
LTC1609ISW#PBF	SO	28	I	$24.30	$20.60
LTC1609ISW#TR	SO	28	I		$20.70
LTC1609ISW#TRPBF	SO	28	I		$20.70

LTC1609 数据手册及相关资料下载

数据手册(英文) : LTC1609 - 16-Bit, 200ksps, Serial Sampling ADC.PDF
可靠性数据 : R380 Reliability Data .PDF
