LTC2245 14-Bit, 10Msps Low Power 3V ADC

The LTC®2245 is a 14-bit 10Msps, low power 3V A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2245 is perfect for demanding imaging and communications applications with AC performance that includes 74.4dB SNR and 90dB SFDR for signals well beyond the Nyquist frequency.

DC specs include ±1LSB INL (typ), ±0.5LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic.

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles

产品特点 Features Sample Rate: 10Msps Single 3V Supply (2.7V to 3.4V) Low Power: 60mW 74.4dB SNR 90dB SFDR No Missing Codes Flexible Input: 1VP-P to 2VP-P Range 575MHz Full Power Bandwidth S/H Clock Duty Cycle Stabilizer Shutdown and Nap Modes Pin Compatible Family 125Msps: LTC2253 (12-Bit), LTC2255 (14-Bit) 105Msps: LTC2252 (12-Bit), LTC2254 (14-Bit) 80Msps: LTC2229 (12-Bit), LTC2249 (14-Bit) 65Msps: LTC2228 (12-Bit), LTC2248 (14-Bit) 40Msps: LTC2227 (12-Bit), LTC2247 (14-Bit) 25Msps: LTC2226 (12-Bit), LTC2246 (14-Bit) 10Msps: LTC2225 (12-Bit), LTC2245 (14-Bit) 32-Pin (5mm × 5mm) QFN Package 封装	应用 Wireless and Wired Broadband Communication Imaging Systems Spectral Analysis Portable Instrumentation 典型应用图参数

产品特点 Features

Sample Rate: 10Msps
Single 3V Supply (2.7V to 3.4V)
Low Power: 60mW
74.4dB SNR
90dB SFDR
No Missing Codes
Flexible Input: 1VP-P to 2VP-P Range
575MHz Full Power Bandwidth S/H
Clock Duty Cycle Stabilizer
Shutdown and Nap Modes
Pin Compatible Family
125Msps: LTC2253 (12-Bit), LTC2255 (14-Bit)
105Msps: LTC2252 (12-Bit), LTC2254 (14-Bit)
80Msps: LTC2229 (12-Bit), LTC2249 (14-Bit)
65Msps: LTC2228 (12-Bit), LTC2248 (14-Bit)
40Msps: LTC2227 (12-Bit), LTC2247 (14-Bit)
25Msps: LTC2226 (12-Bit), LTC2246 (14-Bit)
10Msps: LTC2225 (12-Bit), LTC2245 (14-Bit)
32-Pin (5mm × 5mm) QFN Package

封装

应用

Wireless and Wired Broadband Communication
Imaging Systems
Spectral Analysis
Portable Instrumentation

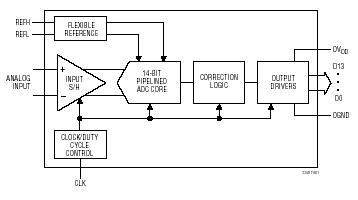

典型应用图

参数
