LTC2280 Dual 10-Bit, 105Msps Low Noise 3V ADC

The LTC®2280 is a 10-bit 105Msps, low noise 3V dual A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2280 is perfect for demanding imaging and communications applications with AC performance that includes 61.6dB SNR and 85dB SFDR for signals at the Nyquist frequency.

DC specs include ±0.1LSB INL (typ), ±0.1LSB DNL (typ) and ±0.6LSB INL, ±0.6LSB DNL over temperature. The transition noise is a low 0.08LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic.

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles

产品特点 Features Integrated Dual 10-Bit ADCs Sample Rate: 105Msps Single 3V Supply (2.85V to 3.4V) Low Power: 540mW 61.6dB SNR, 85dB SFDR 110dB Channel Isolation at 100MHz Flexible Input: 1VP-P to 2VP-P Range 575MHz Full Power Bandwidth S/H Clock Duty Cycle Stabilizer Shutdown and Nap Modes Pin Compatible Family 105Msps: LTC2282 (12-Bit), LTC2280 (10-Bit) 80Msps: LTC2294 (12-Bit), LTC2289 (10-Bit) 65Msps: LTC2293 (12-Bit), LTC2288 (10-Bit) 40Msps: LTC2292 (12-Bit), LTC2287 (10-Bit) 25Msps: LTC2291 (12-Bit), LTC2286 (10-Bit) 10Msps: LTC2290 (12-Bit) 64-Pin (9mm × 9mm) QFN Package 封装	应用 Wireless and Wired Broadband Communication Imaging Systems Spectral Analysis Portable Instrumentation 典型应用图参数

产品特点 Features

Integrated Dual 10-Bit ADCs
Sample Rate: 105Msps
Single 3V Supply (2.85V to 3.4V)
Low Power: 540mW
61.6dB SNR, 85dB SFDR
110dB Channel Isolation at 100MHz
Flexible Input: 1VP-P to 2VP-P Range
575MHz Full Power Bandwidth S/H
Clock Duty Cycle Stabilizer
Shutdown and Nap Modes
Pin Compatible Family
105Msps: LTC2282 (12-Bit), LTC2280 (10-Bit)
80Msps: LTC2294 (12-Bit), LTC2289 (10-Bit)
65Msps: LTC2293 (12-Bit), LTC2288 (10-Bit)
40Msps: LTC2292 (12-Bit), LTC2287 (10-Bit)
25Msps: LTC2291 (12-Bit), LTC2286 (10-Bit)
10Msps: LTC2290 (12-Bit)
64-Pin (9mm × 9mm) QFN Package

封装

应用

Wireless and Wired Broadband Communication
Imaging Systems
Spectral Analysis
Portable Instrumentation

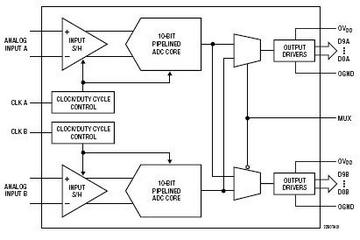

典型应用图

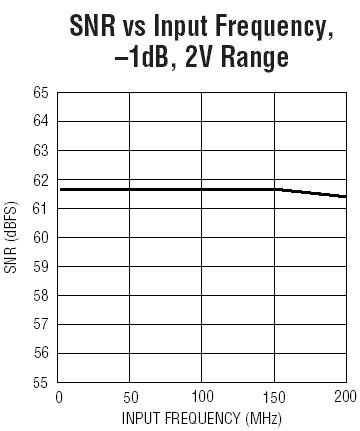

参数

LTC2280 订购信息和价格参考Package Variations and Pricing

器件型号	封装	引脚	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量) *
LTC2280CUP	QFN	64	C	$16.07	$11.25
LTC2280CUP#PBF	QFN	64	C	$16.07	$11.25
LTC2280CUP#TR	QFN	64	C		$11.35
LTC2280CUP#TRPBF	QFN	64	C		$11.35
LTC2280IUP	QFN	64	I	$19.29	$13.50
LTC2280IUP#PBF	QFN	64	I	$19.29	$13.50
LTC2280IUP#TR	QFN	64	I		$13.60
LTC2280IUP#TRPBF	QFN	64	I		$13.60

LTC2280 演示电路板

器件型号	描述
DC1151A-W	LTC2280IUP \| DeMUX DUAL ADC, +3.0V, 105Msps 10-Bit 1MHz < Ain < 70MHz, (req. DC890)
DC1151A-X	LTC2280IUP \| DeMUX DUAL ADC, +3.0V, 105Msps 10-Bit 70MHz < Ain < 140MHz, (req. DC890)

Companion Boards

器件型号	描述
DC1075A	Clock Divider board
DC1164A	High Speed ADC Signal Source
DC1216A-A	100MHz High Speed ADC Clock Source
DC1216A-B	122.88MHz High Speed ADC Clock Source
DC1216A-C	80MHz High Speed ADC Clock Source
DC1371A	High Speed (up to 250Mbps, CMOS/LVDS) USB Data Collection Board

LTC2280 数据手册及相关资料下载

数据手册(英文) : LTC2280 - Dual 10-Bit, 105Msps Low Noise 3V ADC.PDF
可靠性数据 : R488 Reliability Data .PDF
产品选型卡 : Differential Amplifiers/High Speed ADC Drivers .PDF
产品选型卡 : 14-/12-Bit Quad & Dual, Serial LVDS ADCs .PDF
