LTC2299 Dual 14-Bit, 80Msps Low Power 3V ADC

The LTC®2299 is a 14-bit 80Msps, low power dual 3V A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2299 is perfect for demanding imaging and communications applications with AC performance that includes 73dB SNR and 90dB SFDR for signals well beyond the Nyquist frequency.

DC specs include ±1.2LSB INL (typ), ±0.5LSB DNL (typ) and ±0.5LSB INL, ±0.5LSB DNL over temperature. The transition noise is a low 1.2LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic. An optional multiplexer allows both channels to share a digital output bus.

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles

产品特点 Features Integrated Dual 14-Bit ADCs Sample Rate: 80Msps Single 3V Supply (2.7V to 3.4V) Low Power: 444mW 73dB SNR at 70MHz Input 90dB SFDR at 70MHz Input 110dB Channel Isolation at 100MHz Multiplexed or Separate Data Bus Flexible Input: 1VP-P to 2VP-P Range 575MHz Full Power Bandwidth S/H Clock Duty Cycle Stabilizer Shutdown and Nap Modes Pin Compatible Family 105Msps: LTC2282 (12-Bit), LTC2284 (14-Bit) 80Msps: LTC2294 (12-Bit), LTC2299 (14-Bit) 65Msps: LTC2293 (12-Bit), LTC2298 (14-Bit) 40Msps: LTC2292 (12-Bit), LTC2297 (14-Bit) 25Msps: LTC2291 (12-Bit), LTC2296 (14-Bit) 64-Pin (9mm × 9mm) QFN Package 封装	应用 Wireless and Wired Broadband Communication Imaging Systems Spectral Analysis Portable Instrumentation 典型应用图参数

产品特点 Features

Integrated Dual 14-Bit ADCs
Sample Rate: 80Msps
Single 3V Supply (2.7V to 3.4V)
Low Power: 444mW
73dB SNR at 70MHz Input
90dB SFDR at 70MHz Input
110dB Channel Isolation at 100MHz
Multiplexed or Separate Data Bus
Flexible Input: 1VP-P to 2VP-P Range
575MHz Full Power Bandwidth S/H
Clock Duty Cycle Stabilizer
Shutdown and Nap Modes
Pin Compatible Family
105Msps: LTC2282 (12-Bit), LTC2284 (14-Bit)
80Msps: LTC2294 (12-Bit), LTC2299 (14-Bit)
65Msps: LTC2293 (12-Bit), LTC2298 (14-Bit)
40Msps: LTC2292 (12-Bit), LTC2297 (14-Bit)
25Msps: LTC2291 (12-Bit), LTC2296 (14-Bit)
64-Pin (9mm × 9mm) QFN Package

封装

应用

Wireless and Wired Broadband Communication
Imaging Systems
Spectral Analysis
Portable Instrumentation

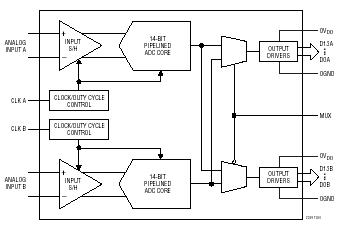

典型应用图

参数

LTC2299 订购信息和价格参考Package Variations and Pricing

器件型号	封装	引脚	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量) *
LTC2299CUP	QFN	64	C	$16.07	$11.25
LTC2299CUP#PBF	QFN	64	C	$16.07	$11.25
LTC2299CUP#TR	QFN	64	C		$11.35
LTC2299CUP#TRPBF	QFN	64	C		$11.35
LTC2299IUP	QFN	64	I	$19.29	$13.50
LTC2299IUP#PBF	QFN	64	I	$19.29	$13.50
LTC2299IUP#TR	QFN	64	I		$13.60
LTC2299IUP#TRPBF	QFN	64	I		$13.60

LTC2299 演示电路板

器件型号	描述
DC851A-A	LTC2299IUP \| DeMUX Dual ADC , +3.0V, 80Msps 14-Bit 1MHz < Ain < 70MHz, (req. DC890)
DC851A-F	LTC2299IUP \| DeMUX DUAL ADC, +3.0V, 80Msps, 14Bit, 70MHz < AIN < 140MHz, (req. DC890)

Companion Boards

器件型号	描述
DC1164A	High Speed ADC Signal Source
DC1216A-A	100MHz High Speed ADC Clock Source
DC1216A-B	122.88MHz High Speed ADC Clock Source
DC1216A-C	80MHz High Speed ADC Clock Source
DC718C	USB Data Acquisition Controller, for QuikEval -II Evaluation Kits
DC890B	High Speed (up to 250Mbps, CMOS/LVDS) USB Data Collection Board

LTC2299 数据手册及相关资料下载

数据手册(英文) : LTC2299 - Dual 14-Bit, 80Msps Low Power 3V ADC.PDF
可靠性数据 : R478 Reliability Data .PDF
产品选型卡 : Differential Amplifiers/High Speed ADC Drivers .PDF
产品选型卡 : 14-/12-Bit Quad & Dual, Serial LVDS ADCs .PDF
软件和仿真: LTC229X IBIS model.IBS
