LTC5533 300MHz to 11GHz Precision Dual RF Power Detector

The LTC®5533 is a dual channel RF power detector for RF applications operating in the 300MHz to 11GHz range. Two independent temperature compensated Schottky diode peak detectors and buffer amplifiers are combined in a small 4mm × 3mm DFN package.

The RF input voltage is peak detected using on-chip Schottky diodes. The detected voltage is buffered and supplied to the VOUT pins. A power saving shutdown mode reduces current to less than 2µA/channel. The initial output starting voltages can be precisely adjusted using the VOS pins.

The LTC5533 operates with input power levels from -32dBm to 12dBm.

*Higher frequency operation is achievable with reduced performance. Consult factory for more information.

产品特点 Features

Two Independent Temperature Compensated Schottky Diode RF Peak Detectors
45dB Channel-to-Channel Isolation at 2GHz
Wide Input Frequency Range: 300MHz to 11GHz*
Wide Input Power Range: -32dBm to 12dBm
Buffered Detector Outputs with Gain of 2x
Adjustable VOUT Starting Voltage
Wide VCC Range of 2.7V to 6V
Low Operating Current: <500µA/Channel
Low Shutdown Current: <2µA/Channel
4mm × 3mm DFN Package

参数

应用

PA Forward and Reverse Power Monitor
Dual PA Transmit Power Control
802.11a, b, g, 802.15, WiMAX
PA linearization
Fixed Wireless Access
RF Power Alarm
Envelope Detector

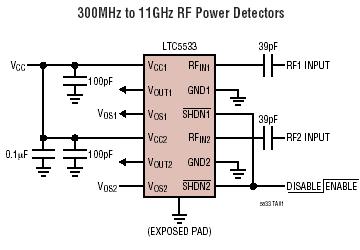

典型应用图

LTC5533 订购信息和价格参考Package Variations and Pricing

器件型号	封装	引脚	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量) *
LTC5533EDE	DFN	12	E	$4.55	$3.20
LTC5533EDE#PBF	DFN	12	E	$4.55	$3.20
LTC5533EDE#TR	DFN	12	E		$3.28
LTC5533EDE#TRPBF	DFN	12	E		$3.28

LTC5533 数据手册及相关资料下载

数据手册 (英文) : LTC5533 - 300MHz to 11GHz Precision Dual RF Power Detector.PDF
应用指南 (英文) : AN91 - Low Cost Coupling Methods for RF Power Detectors Replace Directional Couplers.PDF
设计要点 (中文) : DN335 - 用于功率检波和控制的宽带 RF IC.PDF
可靠性数据 : R450 Reliability Data .PDF
