2N6427:NPN Bipolar Darlington Transistor

This NPN Bipolar Darlington Transistor is designed for use in switching applications, such as print hammer, relay, solenoid and lamp drivers. The device is housed in the TO-92 package, which is designed for medium power applications.

技术特性
  • Pb-Free Packages are Available
订购信息 Ordering Information
产品 状况 Compliance 具体说明 封装 MSL* 容器 预算价格 (1千个数量的单价)
类型 外形 类型 数量
2N6427G Active Pb-free NPN Bipolar Darlington Transistor TO-92 29-11   Bulk Box 5000 $0.12
2N6427RLRAG Active Pb-free NPN Bipolar Darlington Transistor TO-92 29-11   Tape and Reel 2000 $0.12
2N6427 Last Shipments NPN Bipolar Darlington Transistor TO-92 29-11   Bulk Box 5000
2N6427RLRA Last Shipments NPN Bipolar Darlington Transistor TO-92 29-11   Tape and Reel 2000

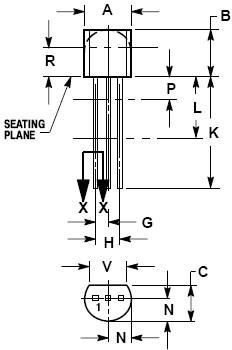

封装图 PACKAGE DIMENSIONS

2N6427 封装图

概述 版本信息 大小
2N6427 数据资料DataSheet下载:pdf Rev.V2 2 页
