BC856 SERIES NPN Bipolar Transistor

This PNP Bipolar Transistor is designed for general purpose amplifier applications. It is housed in the SOT-723, which is designed for low power surface mount applications.

技术特性
  • This is a Pb-Free Device
技术特性
  • ESD Protection
  • Polarity Reversal Protection
  • Data Line Protection
  • Inductive Load Protection
  • Steering Logic

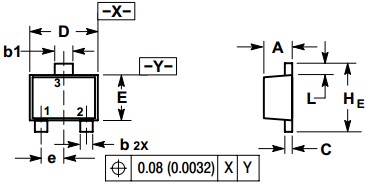

封装图 PACKAGE DIMENSIONS

BC856 SERIES封装图

订购信息 Ordering Information
产品 状况 Compliance 具体说明 封装 MSL* 容器 预算价格 (1千个数量的单价)
类型 外形 类型 数量
BC856BM3T5G Active
AEC Qualified
Pb-free
Halide free
PNP Bipolar Transistor SOT-723-3 631AA 1 Tape and Reel 8000 $0.033
数据资料DataSheet下载
概述 文档编号/大小 版本
NPN Bipolar Transistor BC856 SERIES-D(417.0kB) 3
