BD682:4.0 A, 100 V PNP Darlington Bipolar Power Transistor

This series of plastic, medium-power PNP Darlington transistors can be used as output devices in complementary general-purpose amplifier applications.

技术特性
  • High DC Current Gain -
    hFE = 750 (Min) @ IC = 1.5 and 2.0 Adc
  • Monolithic Construction
  • BD676, 676A, 678, 678A, 680, 680A, 682
    are complementary with BD675, 675A, 677, 677A, 679, 679A, 681
  • BD 678, 678A, 680, 680A
    are equivalent to MJE 700, 701, 702, 703
  • Pb-Free Packages are Available

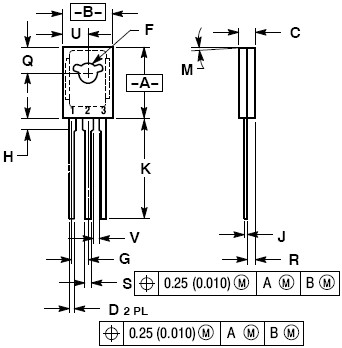

封装图 PACKAGE DIMENSIONS

BD682 封装图

订购信息 Ordering Information
产品 状况 Compliance 具体说明 封装 MSL* 容器 预算价格 (1千个数量的单价)
类型 外形 类型 数量
BD682G Active
Pb-free
Halide free
4.0 A, 100 V PNP Darlington Bipolar Power Transistor TO-225-3 77-09   Bulk Box 500 $0.32
BD682TG Last Shipments
Pb-free
Halide free
4.0 A, 100 V PNP Darlington Bipolar Power Transistor TO-225-3 77-09   Tube 50
BD682 Last Shipments 4.0 A, 100 V PNP Darlington Bipolar Power Transistor TO-225-3 77-09   Bulk Box 500
数据资料DataSheet下载
概述 版本信息 大小
BD682 数据资料DataSheet下载:pdf Rev.V2 2 页
