CAT5127:Digital Potentiometer (POT), 256-Tap, I2C Compatible
The CAT5127 is a single digital POT designed as an electronic replacement for mechanical potentiometers and trim pots. Ideal for automated adjustments on high volume production lines, it is also well suited for applications where equipment requiring periodic adjustment is either difficult to access or located in a hazardous or remote environment.
技术特性
- 32-position Linear Taper Potentiometer
- Non-volatile EEPROM Wiper Storage
- Low Standby Current
- Single supply operation: 2.5 V - 5.5 V
- Increment Up/Down Serial Interface
- Resistance Values: 10 kΩ, 50 kΩ, and 100 kΩ
应用
- Automated Product Calibration
- Remote Aontrol Adjustments
- Offset, Gain and Zero Control
- Tamper-proof Calibrations
- Contrast, Brightness and Volume Controls
- Motor Controls and Feedback Systems
- Programmable Analog Functions
|
优势

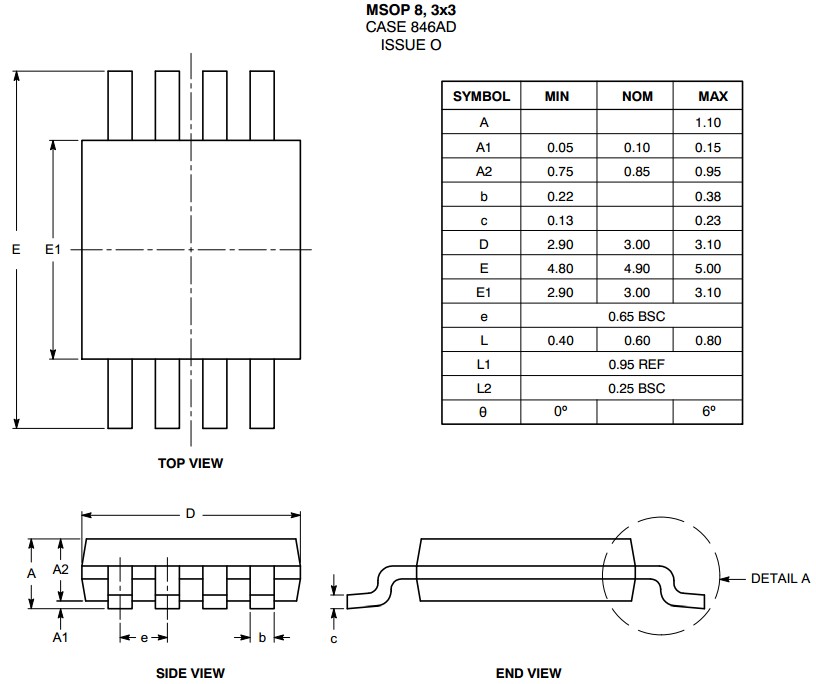

封装图 MARKING DIAGRAM
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| CAT5127ZI-10-G |
Active |
|
Digital Potentiometer (POT), 32-Tap |
MSOP-8 |
846AD |
1 |
Tube |
96 |
$33.3325 |
| CAT5127ZI-10-GT3 |
Active |
|
Digital Potentiometer (POT), 32-Tap |
MSOP-8 |
846AD |
1 |
Tape and Reel |
3000 |
$0.85 |
数据资料DataSheet下载
