LA73076V:Video Driver with Y/C Separation Input Function
The LA73076V is a low voltage drive (2.7V to 3.6V) video driver developed for portable appliances including digital video cameras, digital still cameras and cell phones. It incorporates a minus-voltage generator that allows the LA73076V to generate its output with the pedestal voltage set to 0V, so that no output coupling capacitor is required. This enables substantial reduction in mounting space without concerned about V-sag.
技术特性
- Output coupling capacity not required
- Low-voltage drive (VCC = 2.7V to 3.6V)
- No V-sag occur
- Sextic LPF incorporated (fc = 10MHz)
- 6dB amplifier
- Current drain of 0uA in the standby mode
- Output drive capable of covering maximum 75 output, one channel
终端产品
- Digital still camera
- Security camera
- Surveillance camera
|

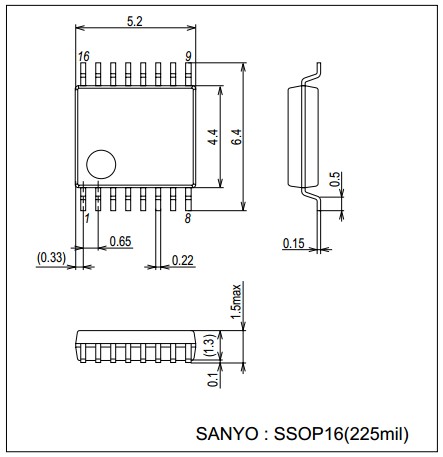

封装图 PACKAGE DIMENSIONS
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| LA73076V-MPB-E |
Active |
|
Video Driver with Y/C Separation Input Function |
SSOP-16 |
565AM |
3 |
|
90 |
$1.0 |
| LA73076V-TLM-E |
Active |
|
Video Driver with Y/C Separation Input Function |
SSOP-16 |
565AM |
3 |
Tape and Reel |
2000 |
$1.0 |
