LUPA4000:4 Megapixel CMOS Image Sensor
LUPA4000 is a CMOS image sensor (CIS) with a 4.0 megapixel resolution 2048 x 2048 pixel format. LUPA4000 features synchronous shutter and a maximal frame rate of 15 fps in full resolution. The readout speed can be boosted by subsampling and windowed ROI readout. High dynamic range scenes can be captured using the double and multiple slope functionality.
技术特性
- 4.0 megapixel resolution, 2048 x 2048 pixel format
- Synchronous shutter and a maximal frame rate of 15 fps in full resolution
- Readout speed can be boosted by subsampling and windowed ROI readout
- Double and multiple slope functionality
- Available in mono or color
应用
- Intelligent traffic system
- High speed machine vision
|

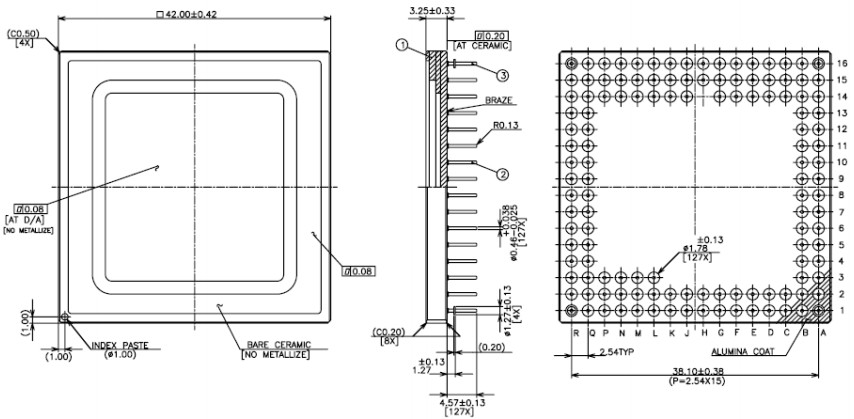

封装图 MARKING DIAGRAM
|
订购信息 Ordering Information
产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价) |
类型 |
外形 |
类型 |
数量 |
NOIL1SC4000A-GDC |
Active |
|
4 Megapixel CMOS Image Sensor, Color, with Glass |
CPGA-127 |
107CW |
|
Tray JEDEC |
12 |
|
NOIL1SM4000A-GDC |
Active |
|
4 Megapixel CMOS Image Sensor, Mono, with Glass |
CPGA-127 |
107CW |
|
Tray JEDEC |
12 |
|
数据资料DataSheet下载
