MC14099B:8-Bit Addressable Latch
The MC14099B and MC14599B are 8-bit addressable latches. Data is entered in serial form when the appropriate latch is addressed (via address pins A0, A1, A2) and write disable is in the low state. Chip enable must be higsh for writing into MC14599B. For the MC14599B the data pin is a bidirectional data port and for the MC14099B the input is a unidirectional write only port. The Write/Read line controls this port in the MC14599B.
技术特性
- Serial Data Input
- Parallel Output
- Master Reset
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- Capable of Driving Two Low-power TTL Loads or One Low-Power Schottky TTL Load over the Rated Temperature Range
- MC14099B pin for pin compatible with CD4099B
- Pb-Free Packages are Available*
|

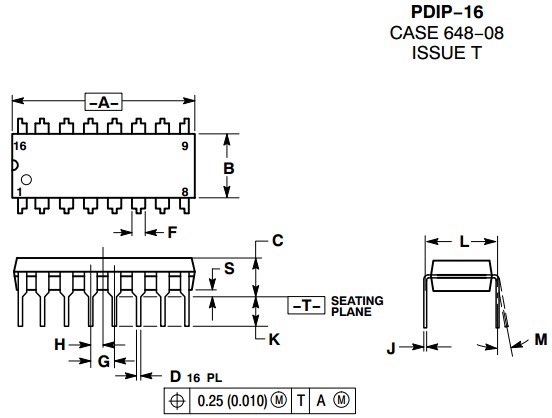

封装图 MARKING DIAGRAM
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| MC14099BCPG |
Lifetime |
|
8-Bit Addressable Latch |
PDIP-16 |
648-08 |
|
Tube |
500 |
$0.4133 |
| MC14099BDWG |
Active |
|
8-Bit Addressable Latch |
SOIC-16W |
751G-03 |
3 |
Tube |
47 |
$0.4133 |
| MC14099BDWR2G |
Active |
|
8-Bit Addressable Latch |
SOIC-16W |
751G-03 |
3 |
Tape and Reel |
1000 |
$0.4133 |
| NLV14099BDWR2G |
Active, Not Rec |
| AEC Qualified |
| PPAP Capable |
| Pb-free |
| Halide free |
|
8-Bit Addressable Latch |
SOIC-16W |
751G-03 |
3 |
Tape and Reel |
1000 |
$0.4547 |
