MJE271:2.0 A, 100 V PNP Darlington Bipolar Power Transistor

The Bipolar Power Transistor is designed specifically for use with the MC3419 Solid-State Subscriber Loop Interface Circuit (SLIC).The MJE270 (NPN) and MJE271 (PNP) are complementary devices.

技术特性
  • High Safe Operating Area IS/B @ 40 V, 1.0 s = 0.375 A - TO-126
  • Collector-Emitter Sustaining Voltage VCEO(sus) = 100 Vdc (Min)
  • High DC Current Gain hFE @ 120 mA, 10 V = 1500 (Min)
  • Pb-Free Packages are Available

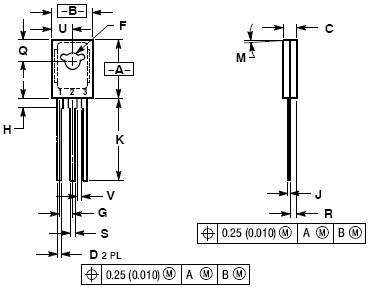

封装图 PACKAGE DIMENSIONS

MJE271封装图

订购信息 Ordering Information
产品 状况 Compliance 具体说明 封装 MSL* 容器 预算价格 (1千个数量的单价)
类型 外形 类型 数量
MJE271G Active
Pb-free
Halide free
2.0 A, 100 V PNP Darlington Bipolar Power Transistor TO-225-3 77-09   Bulk Box 500 $0.384
数据资料DataSheet下载
概述 版本信息 大小
MJE271数据资料DataSheet下载:pdf Rev.V2 2 页
