NCS2553:Video Amplifier, 3-Channel, with Standard Definition Reconstruction Filters
The NCS2553 is a 3-Channel high speed video amplifier with 6th order butterworth standard definition reconstruction filter. All three channels can accommodate either all component and RGB video signals or composite and S-Video signals. All channels can accept DC or AC coupled signals. If AC coupled, the internal clamps are employed. The outputs can drive both AC and DC coupled 150 Ohms loads. It is designed to be compatible with most digital-to-analog converters (DAC) embedded in most video processors.
技术特性
- Three 6th Order Standard Definition 8 MHz Filters
- Internal Fixed Gain = 6 dB
- AC- or DC- Coupled Inputs / Outputs
- Integrated Level Shifter
- Operating Voltage +5 V
- ESD HBM Protection > 8 kV
终端产品
- Set Top Box
- DVD Players
- Flat Panel TVs
|

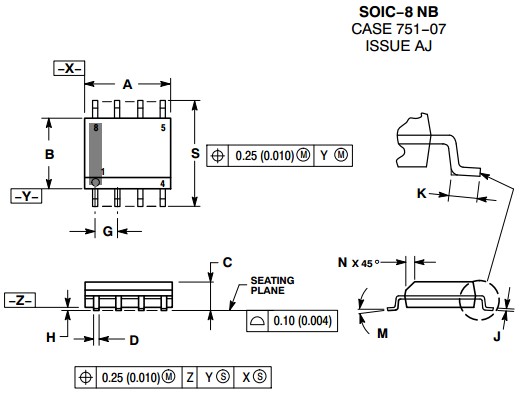

封装图 PACKAGE DIMENSIONS
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| NCS2553DG |
Active |
|
Video Amplifier, 3-Channel, with Standard Definition Reconstruction Filters |
SOIC-8 |
751-07 |
1 |
Tube |
98 |
$0.1733 |
| NCS2553DR2G |
Active |
|
Video Amplifier, 3-Channel, with Standard Definition Reconstruction Filters |
SOIC-8 |
751-07 |
1 |
Tape and Reel |
2500 |
$0.1733 |
数据资料DataSheet下载
