NLAS5123:Analog Switch, SPDT, 1 Ohm
The NLAS5123 is a low RON SPDT analog switch. This device is designed for low operating voltage, high current switching of speaker output for cell phone applications. It can switch a balanced stereo output. The NLAS5123 can handle a balanced microphone/ speaker/ringtone generator in a monophone mode. The device contains a break-before-make (BBM) feature.
技术特性
- Single Supply Operation, 1.65 to 3.6 V
- Low Static Power
- OVT on Logic Address and Enable Inputs
应用
- Cell Phone Speaker/Microphone Switching.
- RingtoneChip/Amplifier Switching.
- Three Unbalanced (SingleEnded) Switches
- Stereo Balanced (PushPull) Switching.
|
终端产品
- Mobile Phones
- VoIP Handsets

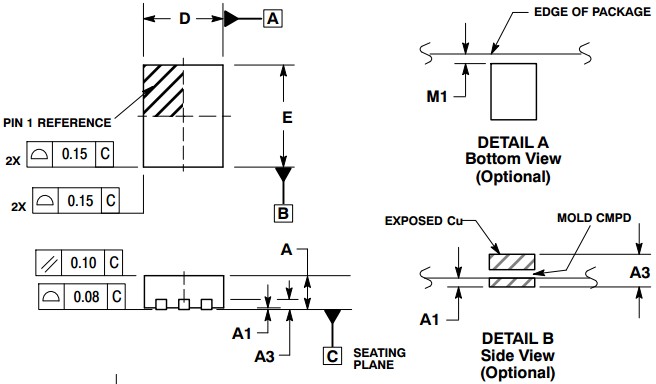

封装图 MARKING DIAGRAM
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| NLAS5123MNR2G |
Active |
|
Analog Switch, SPDT, 1 Ohm |
WDFN-6 |
506AS |
1 |
Tape and Reel |
3000 |
$0.48 |
| NLAS5123MUR2G |
Active |
|
Analog Switch, SPDT, 1 Ohm |
UDFN-6 |
517AA |
1 |
Tape and Reel |
3000 |
$0.5333 |
数据资料DataSheet下载
