VITA25K:CMOS Image Sensor, Global Shutter, 25 Megapixel
The VITA 25K is a 5120 x 5120 CMOS image sensor delivering high resolution images at frame rates up to 53 frames per second. The high sensitivity 4.5 µm x 4.5 4.5 µm pixels support pipelined and triggered global shutter readout modes and can also be operated in a low noise rolling shutter mode. In rolling shutter mode, the sensor supports correlated double sampling readout, reducing noise and increasing the dynamic range.
技术特性
- True family concept
- Multiple shutter modes
- High configurability
- Fast adaptability
- Multiple windowing
- High dynamic range
应用
- High-end Machine Vision Systems
- Motion monitoring
|

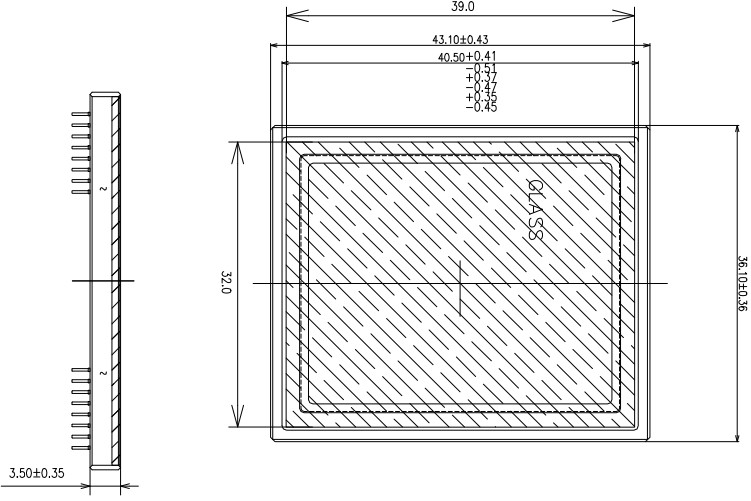

封装图 MARKING DIAGRAM
|
订购信息 Ordering Information
| 产品 |
状况 |
Compliance |
具体说明 |
封装 |
MSL* |
容器 |
预算价格 (1千个数量的单价） |
| 类型 |
外形 |
类型 |
数量 |
| NOIV1SE025KA-GDC |
Active |
|
CMOS Image Sensor, Global Shutter, 25 Megapixel, 53 FPS, LVDS Interface, Color, Micro Lens |
CPGA-355 |
107DJ |
|
Tray JEDEC |
12 |
|
| NOIV1SN025KA-GDC |
Active |
|
CMOS Image Sensor, Global Shutter, 25 Megapixel, 53 FPS, LVDS Interface, Mono, Micro Lens |
CPGA-355 |
107DJ |
|
Tray JEDEC |
12 |
|
数据资料DataSheet下载
