RF1292 Antenna Switch Module with 6 Linear Paths Ideal for 3G and LTE Applications

The RF1292 Antenna Switch Module offers very low insertion loss along with excellent linearity performance. The RF1292 is ideal for multi-mode GSM, EDGE, UMTS and LTE handset applications. This module integrates low pass filtering on the GSM transmit paths thus avoiding the need for external harmonic attenuation. The RF1292 is compatible with +1.8V control logic and is packaged in a compact 2.5mm x 3.2mm, 18-pin, module package which allows for a small solution size with no need for external DC blocking capacitors when no DC is present external to the device.

技术特性 Features
  • Excellent Insertion Loss and Isolation Performance
  • Six Linear Paths Offer Band Combination and
    Air Interface Flexibility
  • Very high Linearity and Excellent Harmonic Performance - Ideally Suited for LTE Applications
  • Excellent GSM TX Harmonic Attenuation
  • Fully Spec Compliant at 1.2V Control Voltage
  • Broadband Performance Suitable for all Cellular Modulation Schemes up to 3GHz
  • Very Low Current Consumption
  • Compact 2.5mm  x  3.2mm x  1.0mm(typ) Laminate Module
  • >2kV HBM ESD on all Paths
应用领域 Applications
  • Cellular Handset Applications
  • Cellular Modems and USB Devices
  • "Multi-Mode GSM, EDGE,WCDMA, LTE, and TD-SCDMA Applications
产品实物图

RF1292   产品实物图

技术指标
Switch Type: SP8T
Frequency Range (Min) (MHz): 500
Frequency Range (Max) (MHz): 2700
Insertion Loss (dB): 0.5
IIP2 (dBm): 110
IIP3 (dBm): 72
Package: 18-Pin, 2.5mm x 3.2mm Module

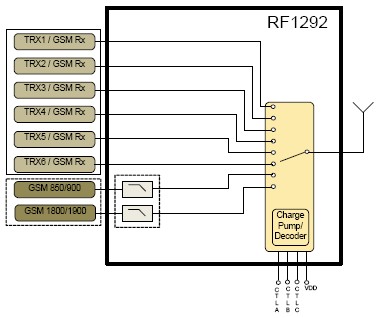

功能框图 Functional Block Diagram

RF1292   功能框图

订购信息 Ordering Information
订购型号 MOQ*             INC*             Packaging and Shipping Details QTY Per 1 EA
RF1292SQ 25 EA 25 EA Standard 25 Piece Bag Shipping From Beijing 1+ $4.15
RF1292SR 100 EA 100 EA Standard 100 Piece 13" Reel Shipping From Beijing 100+ $2.90
RF1292TR13 2500 EA 2500 EA Standard 2500 Piece 13" Reel Shipping From Greensboro 750+ $2.02
RF1292TR7 2500 EA 2500 EA Standard 2500 Piece 7" Reel Shipping From Beijing
RF1292PCK-410 1 EA 1 EA Standard 1 Shipping From Greensboro 1+ $150.00

应用技术支持与电子电路设计开发资源下载 大小(KB) 版本信息
RF1292 数据资料DataSheet下载.pdf 140 DSB120326
