RF1450 SP4T Switch
The RF1450 is a single-pole four-throw (SP4T) high power switch specially designed to handle GSM power applications. Excellent linearity performance achieved by the RF1450 makes it ideal for multimode GSM/EDGE/WCDMA applications. Additionally RF1450 includes integrated decoding logic allowing just two control lines needed for switch control. The RF1450 is packaged in a very compact 3mm x 3mm x 0.6mm 16-pin leadless QFN package
技术特性 Features
- Low Frequency: 2.5GHz Operation
- Low Insertion Loss: 0.4dB at 1GHz
- High Isolation: 29dB at 1GHz
- VDD = 2.5V to 2.85V Down to 1.8V for Low Power Applications
- Compatible With Low Voltage Logic (VHIGH Min = 1.3V)
- High Linearity:IMD < -115dBm
- Excellent Harmonic Performance: -80dBc at 1GHz
- GaAs pHEMT Process
订购信息 Ordering Information
- RF1450 Broadband High Power SP4T Switch
- RF1450PCBA-410 Fully Assembled Evaluation Boar
应用领域 Applications
- Cellular Handset Applications
- Multi-Mode GSM, WCDMA Applications
- GSM/GPRS/EDGE Switch Applications
- Cellular Infrastructure Applications
RF1450 产品实物图
|
技术指标
| Switch Type: |
SP4T |
| Frequency Range (Min) (MHz): |
0 |
| Frequency Range (Max) (MHz): |
2500 |
| Insertion Loss (dB): |
0.4 |
| Isolation (dB): |
29 |
| OP1dB (dBm): |
38 |
| VSUPPLY (V): |
1.8 |
| Package: |
QFN |
| Form: |
Packaged |

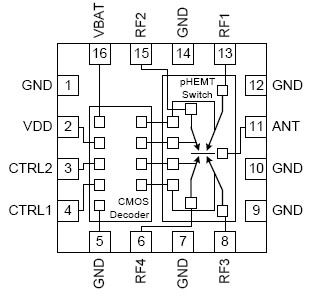

功能框图 Functional Block Diagram
|
