RF1480 SP8T Switch - GSM, WCDMA

The RF1480 is a single-pole eight-throw (SP8T) high power switch specially designed for GSM and WCDMA applications. Excellent linearity performance achieved by the RF1480 makes it ideal for multimode GSM/EDGE/WCDMA applications. Additionally RF1480 includes integrated three wire SPI interface for switch control. The RF1480 is packaged in a very compact 3.5mmx3.5mmx0.85mm 20-pin leadless QFN package

技术特性 Features
  • Low Insertion Loss 0.4dB at 1GHz
  • High Isolation 26dB at 1GHz
  • Controlled by 3-Wire SPI Bus
  • Compatible with 1.8V Logic: VCTL High=1.3V to 2.7V
  • VDD=1.5V to 3.0V
  • AuxSPI VDD=1.5V to 3.0V
  • High Linearity IMD3 <-108dBm IMD2 <-103dBm
  • Harmonics: -83dBcat1GHz
  • GaAs pHEMT Process
订购信息 Ordering Information
  • RF1480 SP8T Switch
  • RF1480PCBA-410 Fully Assembled Evaluation Board
应用领域 Applications
  • Cellular Handset Applications
  • Multi-Mode GSM, WCDMA Applications
  • GSM/GPRS/EDGE Switch Applications
  • Cellular Infrastructure Applications
技术指标
Switch Type: SP8T
Frequency Range (Min) (MHz): 0
Frequency Range (Max) (MHz): 2500
Insertion Loss (dB): 0.7
Isolation (dB): 27
VSUPPLY (V): 2.7
Package: QFN
Form: Packaged

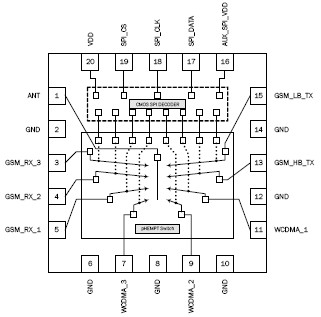

功能框图 Functional Block Diagram

RF1480功能框图

订购信息 Ordering Information
订购型号 MOQ*             INC*             Packaging and Shipping Details QTY Per 1 EA
RF1480 25 EA 25 EA Standard 25 Piece Bag Shipping From Greensboro 1+ $3.72
RF1480SR 100 EA 100 EA Standard 100 Piece 7" Short Reel Shipping From Greensboro 100+ $2.60
RF1480TR13 2500 EA 2500 EA Standard 2500 Piece 13" Reel Shipping From Beijing 750+ $1.81
RF1480TR7 2500 EA 2500 EA Standard 2500 Piece 7" Reel Shipping From Beijing
RF1480PCK-410 1 EA 1 EA Standard 1 Shipping From Greensboro 1+ $150.00

应用技术支持与电子电路设计开发资源下载 大小(KB) 版本信息
RF1480数据资料DataSheet下载:PDF 455 Rev A0 DS090113
