RF1602 Broadband SPDT Switch
The RF1602 is a single-pole dual-throw (SPDT) switch designed for switching applications requiring very low insertion loss and high power handling capability coupled with minimal DC power consumption. The excellent linearity performance achieved by the RF1602 makes it ideal for use in SV-LTE, WCDMA, and CDMA applications. The RF1602 offers very high isolation between RF ports providing greater separation between transmit and receive paths. The RF1602 is packaged in a very compact 2mm x 2mm x 0.55mm 12-Pin QFN package.
技术特性 Features
- Low Frequency to 3.5GHz Operation
- Low Insertion Loss, Typ. 0.3dB at 1GHz
- Very High Isolation, Typ. 42dB at 1GHz
- High Linearity, IIP2 Typ. 129dBm
- Direct Connection to VBATT
- Compatible with Low Voltage Logic (VHIGH Minimum = 1.3V)
- No External DC Blocking Capacitors Required on RF Paths Unless DC is applied Externally
- 2kV HBM Rating on All Ports
订购信息 Ordering Information
- RF1602 Broadband SPDT Switch
- RF1602PCBA-41X Fully Assembled Evaluation Board
应用领域 Applications
- SV-LTE, WCDMA, GSM
- Post PA Switching
- General Purpose Switching Applications
产品实物图
|
技术指标
| Switch Type: |
SPDT |
| Frequency Range (Min) (MHz): |
400 |
| Frequency Range (Max) (MHz): |
3500 |
| Insertion Loss (dB): |
0.3 |
| VSUPPLY (V): |
3.5 |
| Package: |
QFN |
| Form: |
Packaged |

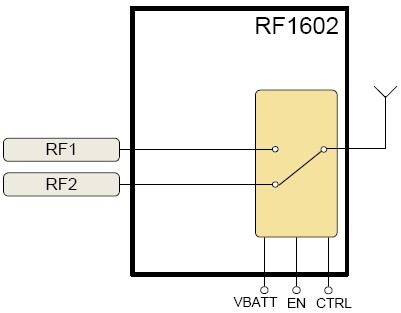

功能框图 Functional Block Diagram
|
订购信息 Ordering Information
| 订购型号 |
MOQ* |
INC* |
Packaging and Shipping Details |
QTY |
Per 1 EA |
| RF1602SQ |
25 EA |
25 EA |
Standard 25 Piece Bag Shipping From Beijing |
1+ |
$1.14 |
| RF1602SR |
100 EA |
100 EA |
Standard 100 Piece 7" Short Reel Shipping From Beijing |
100+ |
$0.80 |
| RF1602TR13 |
2500 EA |
2500 EA |
Standard 2500 Piece 13" Reel Shipping From |
750+ |
$0.56 |
| RF1602TR7 |
2500 EA |
2500 EA |
Standard 2500 Piece 7" Reel Shipping From Beijing |
|
|
| RF1602PCK-410 |
1 EA |
1 EA |
Standard 1 Shipping From Greensboro |
1+ |
$150.00 |
