RF2044A General Purpose Amplifier

The RF2044A is a general purpose, low-cost RF amplifier IC. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as an easily-cascadable 50Ω gain block. Applications include IF and RF amplification in wireless voice and data communication products operating in frequency bands up to 6000MHz. The device is self-contained with 50Ω input and output impedances and requires only two external DC biasing elements to operate as specified

技术特性 Features
  • DC to >6000MHz Operation
  • Internally matched Input and Output
  • 18.5dB Small Signal Gain at 2GHz
  • 4.0dB Noise Figure
  • 50mW Linear Output Power
  • Single Positive Power Supply

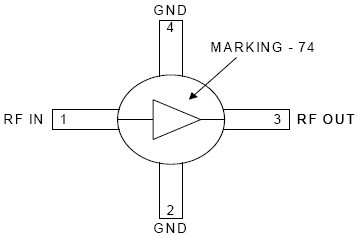

功能框图 Functional Block Diagram

RF2044A 功能框图

RF2044A 产品实物图

RF2044A 产品实物图

Frequency Range (Min) (MHz): 0.1
Frequency Range (Max) (MHz): 6000
Gain (dB): 18.5
NF (dB): 3.5
OP1dB (dBm): 17.5
OIP3 (dBm): 32
VSUPPLY (V): 4.5
ISUPPLY (mA): 65
Package: Micro-X Ceramic
应用领域 Applications
  • Broadband, Low-Noise Gain Blocks
  • IF or RF Buffer Amplifiers Driver Stage for Power Amplifiers
  • Final PA for Low-Power Applications
  • High Reliability Applications
  • Broadband Test Equipment
订购信息 Ordering Information
  • RF2044AGeneral Purpose Amplifier RF2044A General Purpose Amplifier
  • RF204XPCBA-41X Fully Assembled Evaluation Board

应用技术支持与电子电路设计开发资源下载 大小(KB) 版本信息
RF2044A 数据资料DataSheet下载:RF2044A General Purpose Amplifier 142 DS120706
