RF5570 11B/G/N WLAN SP3T Switch
The RF5570 is a SP3T switch designed for WiFi and WiFi/Bluetooth® applications in the 2.4GHz to 2.5GHz ISM band. The RF5570 is capable of switching between WiFi RX, WiFi TX, and Bluetooth® RX/TX operations. This switch can also be placed in WiFi and Bluetooth® receive modes simutaneously with a slight increase in insertion loss. The RF5570 is provided in a DFN 8-pin 2mm x 2mm x 0.6mm Pb-Free package. This device meets or exceeds the RF switch needs of IEEE802.11b/g/n RF systems.
技术特性 Features
- SP3T Switch
- Switch Control Voltage 2.5V to 5V
- Low Insertion Loss 0.6dB

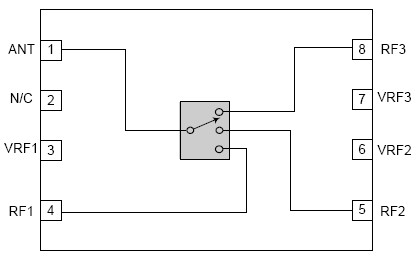

功能框图 Functional Block Diagram
应用领域 Applications
- EEE802.11b/g/n WLAN Applications
- WiFi/Bluetooth® Combination Devices
|
技术指标
| Switch Type: |
SP3T |
| Frequency Range (Min) (MHz): |
2400 |
| Frequency Range (Max) (MHz): |
2500 |
| Insertion Loss (dB): |
0.6 |
| Isolation (dB): |
25 |
| OP1dB (dBm): |
28 |
| VSUPPLY (V): |
2.8 |
| Package: |
DFN |
| Form: |
Packaged |
订购信息 Ordering Information
- RF5570SQ Standard 25-piece Bag
- RF5570SR Standard 100-piece Bag
- RF5570TR7 Standard 2500-piece Reel
- RF5570PCBK-410 Fully Assembled Evaluation Board with 5-piece Sample
|
订购信息 Ordering Information
| 订购型号 |
MOQ* |
INC* |
Packaging and Shipping Details |
QTY |
Per 1 EA |
| RF5570SQ |
25 EA |
25 EA |
Standard 25 Piece Bag Shipping From Greensboro |
1+ |
$1.54 |
| RF5570SR |
100 EA |
100 EA |
Standard 100 Piece 7" Short Reel Shipping From Greensboro |
100+ |
$0.77 |
| RF5570TR7 |
2500 EA |
2500 EA |
Standard 2500 Piece 7" Reel Shipping From Greensboro |
750+ |
$0.54 |
| RF5570PCK-410 |
1 EA |
1 EA |
Standard 1 Shipping From Greensboro |
1+ |
$150.00 |
