RFFM6201 2.0V TO 3.6V, 2.4GHz Front End Module

The RFFM6201 integrates a complete solution in a single font end module (FEM) for WiFi and ZigBee applications in the 2.4GHz band. This FEM integrates the PA plus harmonic filter in the transmit path. The RFFM6201 also integrates a low noise amplifier (LNA) with bypass mode and a balun. The RFFM6201 provides a single balanced TDD access for Rx and Tx paths along with two ports on the output for connecting a diversity solution or a test port. The device is provided in a 5mm x 5mm x 1mm, 24 pin laminate package.

技术特性 Features
  • Tx Output Power = 23dBm
  • Integrated RF Front End Module with Balun, PA, filter, LNA with Bypass Mode and DP2T Switch
  • Single Bidirectional Differential Transceiver Interface
  • Voltage Range = 2.0V to 3.6V

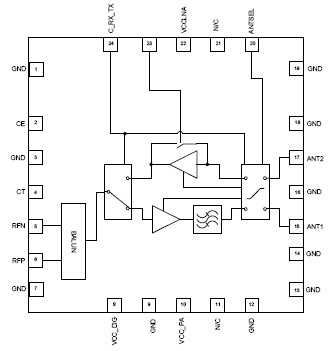

功能框图 Functional Block Diagram

RFFM6201  功能框图


RFFM6201  产品实物图

Frequency Range (Min) (MHz): 2400
Frequency Range (Max) (MHz): 2500
PA Gain (dB): 25
POUT (dBm): 23
OP1dB (dBm): 22
VSUPPLY (V): 170
Efficiency (%): 50 at PA Output
Switch Type: DPDT
Package: Laminate 24-pin
应用领域 Applications
  • ZigBee® 802.15.4 Based Systems for Remote Monitoring and Control
  • 2.4GHz ISM Band Applications
  • AA Battery Operation
  • Smart Meters for Energy Management
订购信息 Ordering Information
  • RFFM6201 3.3V Front End Module for AMR systems in the 2.4GHz to
    2.5GHz Band
  • RFFM6201SQ Standard 25 piece bag
  • RFFM6201SR Standard 100 piece reel
  • RFFM6201TR13 Standard 2500 piece reel
  • RFFM6201PCK-410 Fully assembled evaluation board and 5 loose pieces

应用技术支持与电子电路设计开发资源下载 大小(KB) 版本信息
RFFM6201 数据资料DataSheet下载:PDF 699 DS111216
