RFSW6131 3V and 5V Positive Logic Compatible Symmetric Switches
The RFSW6131 is a GaAs pHEMT single-pole three-throw (SP3T) switch designed for use in Cellular, 3G, LTE, and other high performance communications systems. It offers a symmetric topology with excellent linearity and power handling capability. The RFSW6131 is 3V and 5V positive logic compatible.
技术特性 Features
- LF to 6000MHz Operation
- Symmetric SP3T
- Low Loss: 0.5dB (2GHz)
- Isolation: 27dB (2GHz)
- High IP3: 56dBm
- P0.1dB: 31dBm (5V, 2.2GHz)
- Positive Logic Control
- 3V and 5V Logic Compatible
RFSW6131 产品实物图

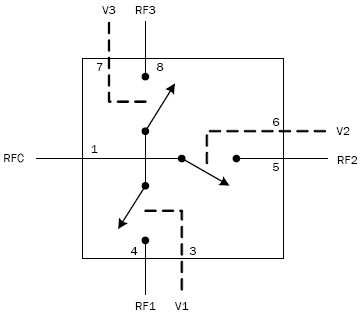

功能框图 Functional Block Diagram
|
技术指标
| Switch Type: |
SP3T |
| Frequency Range (Min) (MHz): |
50 |
| Frequency Range (Max) (MHz): |
6000 |
| Insertion Loss (dB): |
0.5 |
| Isolation (dB): |
27 |
| OP1dB (dBm): |
32.5 |
| VSUPPLY (V): |
3 |
| Package: |
DFN |
| Form: |
Packaged |
应用领域 Applications
- Cellular, 3G, LTE Infrastructure
- WiBro, WiMAX, LTE
- Wireless Backhaul
- High Performance Communications Systems
- GMSK, QPSK, DQPSK, QAM Modulation
订购信息 Ordering Information
- RFSW6131SQ Sample bag with 25 pieces
- RFSW6131SR 7" Sample reel with 100 pieces
- RFSW6131TR7 7" Reel with 2500 pieces
- RFSW6131PCK-410 0.4GHz to 6GHz PCBA with 5-piece sample bag
|
订购信息 Ordering Information
| 订购型号 |
MOQ* |
INC* |
Packaging and Shipping Details |
QTY |
Per 1 EA |
| RFSW6131PCBA-410 |
1 EA |
1 EA |
Standard 1 Shipping From Greensboro |
1+ |
$500.00 |
| RFSW6131SQ |
25 EA |
25 EA |
Standard 25 Piece Bag Shipping From Greensboro |
1+ |
$1.29 |
| RFSW6131SR |
100 EA |
100 EA |
Standard 100 Piece 7" Short Reel Shipping From Greensboro |
100+ |
$0.90 |
| RFSW6131TR7 |
2500 EA |
2500 EA |
Standard 2500 Piece 7" Reel Shipping From Greensboro |
750+ |
$0.60 |
| RFSW6131PCBA-510 |
1 EA |
1 EA |
Standard 1 Shipping From Greensboro |
1+ |
$500.00 |
