RFSW8000 2.5V TO 5.0V, 5MHz TO 6500MHz 10W SPDT Switch

The RFSW8000 is a high power single-pole double-throw (SPDT) switch designed for high performance wireless applications. This wideband switch has been designed for use from 5MHz to 6.5GHz, where extremely high linearity, high isolation, low insertion loss, and small package size are required. Switching for the RFSW8000 is controlled via two control voltage inputs. The RFSW8000 is manufactured in a pHEMT GaAs process and packaged in a 8-pin, 2.0mm x 2.0mm quad-flat no-Lead (QFN) plastic package

技术特性 Features
  • Single Voltage: 2.5V to 5.0V
  • 40dBm P1dB
  • 30dB Isolation at 2GHz

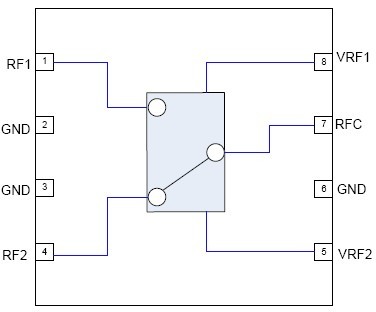

功能框图 Functional Block Diagram

RFSW8000 功能框图

应用领域 Applications
  • IEEE 802.11a/n WiFi Systems
  • IEEE 802.16 WiMAX Systems
  • Customer Premise Equipment(CPE)
  • Wireless Access Points,Gateways and Router Applications
  • ISM Band Transmitter Applications
技术指标
Switch Type: 10W SPDT
Frequency Range (Min) (MHz): 5
Frequency Range (Max) (MHz): 6500
Insertion Loss (dB): 0.3
Package: QFN
RFSW8000 产品实物图

RFSW8000 产品实物图

订购信息 Ordering Information
  • RFSW8000-410 RFSW8000 eval board (100MHz to 2000MHz) and 5-piece bag
  • RFSW8000-411 RFSW8000 eval board (2000MHz to 4500MHz) and 5 piece bag
  • RFSW8000-412 RFSW8000 eval board (4500MHz to 6500MHz) and 5-piece bag
  • RFSW8000SB 5-Piece bag
  • RFSW8000SR 100-Piece reel
  • RFSW8000TR7 2500-Piece reel
  • RFSW8000SQ 25-Piece bag
订购信息 Ordering Information
订购型号 MOQ*             INC*             Packaging and Shipping Details QTY Per 1 EA
RFSW8000PCK-410 1 EA 1 EA Standard 1 Shipping From Greensboro 1+ $150.00
RFSW8000SQ 25 EA 25 EA Standard 25 Piece Bag Shipping From Greensboro 1+ $1.39
RFSW8000SR 100 EA 100 EA Standard 100 Piece 7" Short Reel Shipping From Greensboro 100+ $0.97
RFSW8000TR13 2500 EA 2500 EA Standard 2500 Piece 13" Reel Shipping From Greensboro 750+ $0.68
RFSW8000TR7 2500 EA 2500 EA Standard 2500 Piece 7" Reel Shipping From Greensboro
RFSW8000PCK-411 1 EA 1 EA Standard 1 Shipping From Greensboro 1+ $150.00

应用技术支持与电子电路设计开发资源下载 大小(KB) 版本信息
RFSW8000 数据资料DataSheet下载:PDF 493 DS120404
