SZM-3166Z 2W Class AB Amplifier
RFMD’s portfolio of leading edge products for WiMAX applications is enhanced with the introduction of the new SZM-3166Z high linearity 3.3-3.6 GHz 2W power amplifier. Produced in InGaP HBT technology the SZM-3166Z offers a cost effective solution to more expensive FET based solutions. With only 7.5 dB of backoff from P1dB the SZM-3166Z provides a full 1/2 watt of linear power @ 2.5% EVM while the output stage provides 15% efficiency. RFMD's SZM-3166Z is housed in a low cost 6x6 QFN package and boasts an ESD rating of class 1C.
技术特性 Features
- High gain accommodates all Tx/Rx chip sets
- +27 dBm linear power for OFDM modulation
- Active bias with adjustable Iq current
- Flexible power up / down control for each gain stage
- On chip power detector
- Robust ESD Rating = Class 1C (1000V HBM
应用领域 Applications
- 802.16 WiMAX Driver or Output
Stage
- Fixed Wireless, WLL
- CPE Terminal Applications

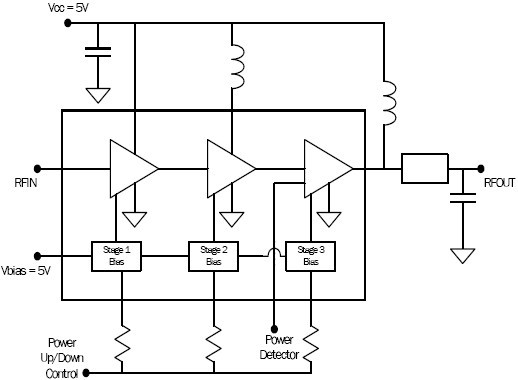

功能框图 Functional Block Diagram
|
技术指标
| Frequency Range (Min) (MHz): |
3300 |
| Frequency Range (Max) (MHz): |
3800 |
| POUT (dBm): |
27 |
| EVM (%): |
2.5 |
| Gain (dB): |
35 |
| VSUPPLY (V): |
5.2 |
| ISUPPLY (mA): |
900 |
| Package: |
QFN |
产品实物图
订购信息 Ordering Information
- SZM3166ZSQ Standard 25 piece bag
- SZM3166ZSR Standard 100 piece reel
- SZM3166Z Standard 1000 piece reel
- SZM3166ZPCK-EVB1 Evaluation Board 3.3GHz to 3.8GHz Tune and 5 loose
sample pieces
|
订购信息 Ordering Information
| 订购型号 |
MOQ* |
INC* |
Packaging and Shipping Details |
QTY |
Per 1 EA |
| SZM3166ZSQ |
25 EA |
25 EA |
Standard 25 Piece Bag Shipping From Greensboro |
1+ |
$12.92 |
| SZM3166ZSR |
100 EA |
100 EA |
Standard 100 Piece 7" Short Reel Shipping From Hsin-Chu |
100+ |
$10.98 |
| SZM3166Z |
1000 EA |
1000 EA |
Standard 1000 Piece 13" Reel Shipping From Hsin-Chu |
750+ |
$9.34 |
| SZM3166ZPCK-EVB1 |
1 EA |
1 EA |
Standard 1 Shipping From Greensboro |
1+ |
$150.00 |
