AD-ICD Adapter for in-circuit debugging of applications for ST7Ultralite. Supports any tool capable of in-circuit debugging using the I

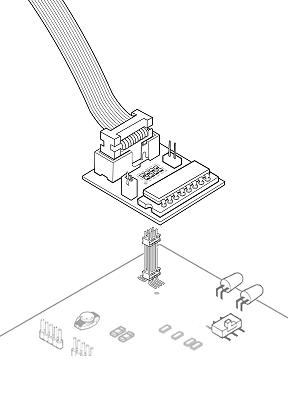

The AD-ICD in-circuit debugging adapter simply connects to your application board in place of the target microcontroller.

The AD-ICD can debug an application running on an ST7FLITEUx microcontroller via a 10-pin ICC connector to an ICD tool that uses the in-circuit communication (ICC) protocol for ST7.

Once the AD-ICD’s microcontroller has been programmed, it can run the application in place of the target microcontroller in standalone mode, without being connected to an in-circuit debugging tool or the host PC.

Debugging uses a minimum of 4 pins on the target ST7 microcontroller. To allow you to take full advantage of the available pins on the target device, the AD-ICD adapter uses a variant of the target microcontroller with additional pins for ICD.

For in-circuit debugging of devices in DFN8 packages, users must order a DFN8 device adapter (ST7MDT10-8/DVP).

技术特性

AD-ICD adapter with a 10-pin ICC connector and an ST7FLiteUx microcontroller in a DIP16 package
Device adapter for target device in a DIP8 package
On-application connector (8-pin header) for target device in an SO8 package

功能框图

AD-ICD 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
AD-ICD/DS8Z-01	Active						AD-ICD/DS8Z-01

DATA BRIEF

描述	版本	大小
AD-ICD: In-circuit debugging adapter for ST7FLITEUx applications	1	54KB

USER MANUALS

描述	版本	大小
UM0231: AD-ICD in-circuit debugging adapter	3	1116KB
