EVAL6208N L6208 DMOS Driver for Bipolar Stepper Motor in PowerDip Package Evaluation board

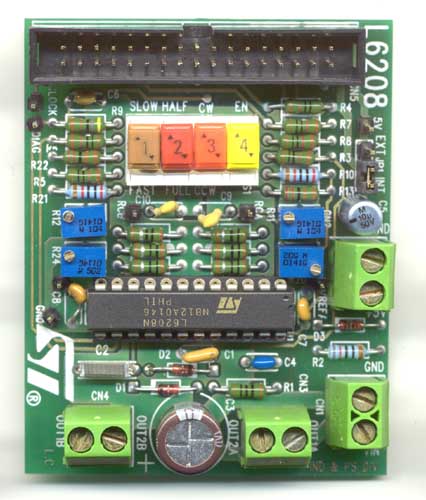

The EVAL6208N is built around L6208 in PowerDip package. It implements a typical stepper motor driver application. Screw connectors provide connection to motor supply rail and 5 V reference for the logic inputs, as well as the four outputs to motor windings. EVAL6208N can be hooked-up to practiSPIN interface board (EVALpractiSPIN) through a 34-pin connector. It is also possible to run board in stand-alone mode: four switches are used to set the direction of the rotation, the stepping sequence and the current decay style, while four potentiometers set the L6208 reference voltage and off-time for the PWM current control; external reference voltages can be provided by a PWM output of a µC.
技术特性
- OPERATING SUPPLY VOLTAGE FROM 8 TO 52V
- 5.6A OUTPUT PEAK CURRENT (2.8A RMS)
- RDS(ON) 0.3W TYP. VALUE @ Tj = 25°C
- OPERATING FREQUENCY UP TO 100KHz
- NON DISSIPATIVE OVERCURRENT PROTECTION
- DUAL INDEPENDENT CONSTANT tOFF PWM CURRENT CONTROLLERS
- FAST/SLOW DECAY MODE SELECTION
- FAST DECAY QUASI-SYNCHRONOUS
- RECTIFICATION
- DECODING LOGIC FOR STEPPER MOTOR FULL AND HALF STEP DRIVE
- CROSS CONDUCTION PROTECTION
- THERMAL SHUTDOWN
- UNDER VOLTAGE LOCKOUTINTEGRATED FAST FREE WHEELING DIODES
| 功能框图
 |
EVAL6208N 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| EVAL6208N |
Active |
|
1000 |
|
|
|
|
DATA BRIEF
| 描述 |
版本 |
大小 |
| EVAL6208N : DB1612: L6208 DMOS Driver for Bipolar Stepper Motor in PowerDip Package Evaluation board |
1 |
1783KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN1794: PractiSPIN evaluation system configuration and set up guide |
2 |
406KB |
| AN2839: L6228 fully-integrated two-phase stepper motor driver |
1 |
1604KB |
| AN1451: L6208 fully integrated two phase stepper motor driver |
2 |
1311KB |
