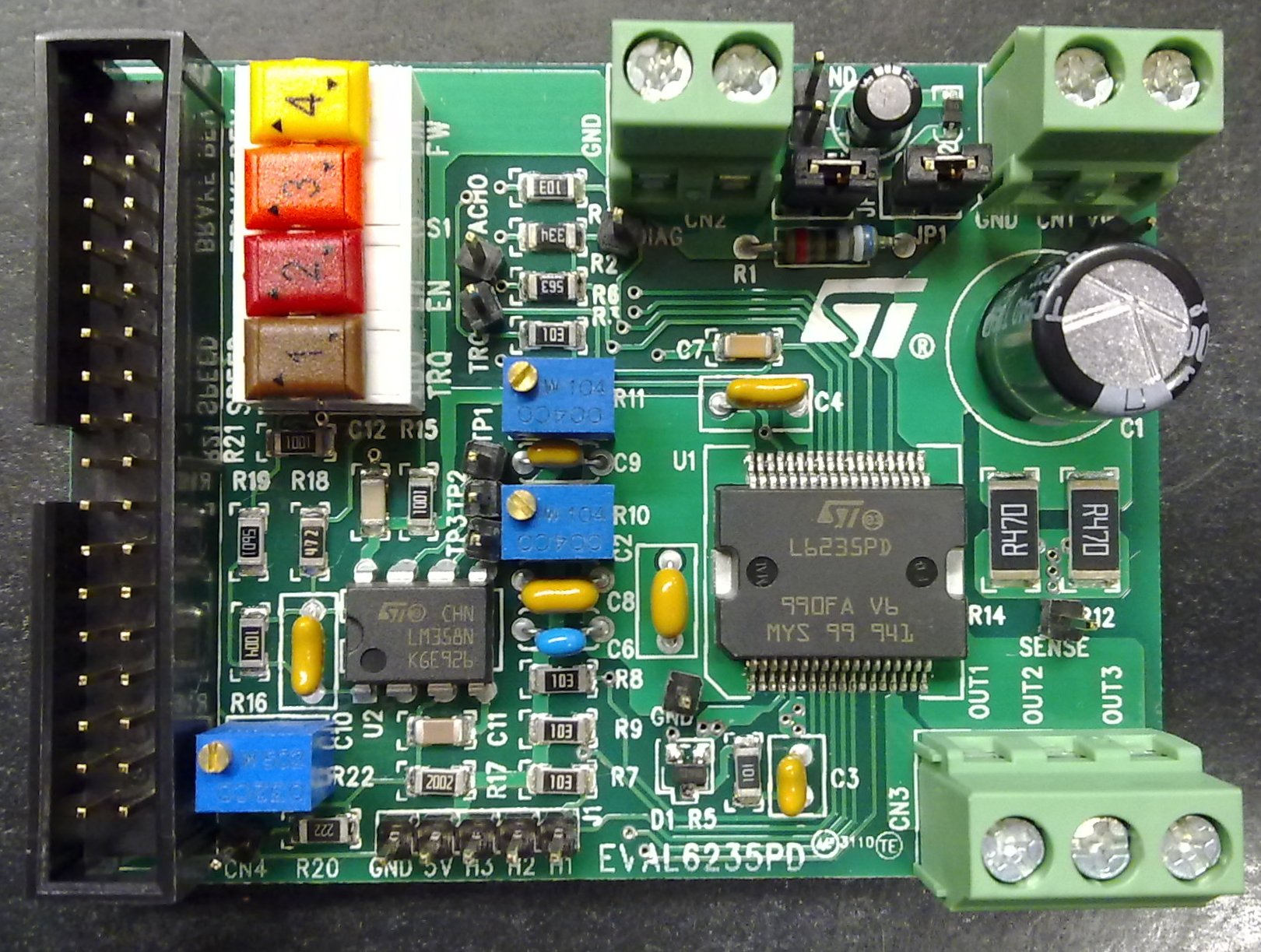

EVAL6235PD L6235 three-phase brushless DC motor driver demonstration board

The EVAL6235PD demonstration board is a fully integrated DMOS three-phase brushless DC motor driver.

Used in conjunction with the EVALPRACTISPIN interface board and practiSPIN software, the board provides an evaluation platform to test the features of the L6235 device. In particular, the board provides a means to evaluate the power dissipation performance of the IC in the PowerSO package.

An example of speed loop is implemented. The speed information is obtained by analog integration of the TACHO output. Fine tuning of external components is needed to fit application requirements.

The board is designed with a large GND area to minimize noise and optimize power dissipation

技术特性
  • Operating supply voltage from 8 V to 52 V
  • 5.6 A output peak current (2.8 ARMS)
  • Operating frequency up to 100 kHz
  • Non-dissipative overcurrent protection
  • Constant off-time PWM current controller
  • 60° and 120° Hall effect decoding logic
  • Brake function
  • TACHO output for speed loop
  • Suitable for EVALPRACTISPIN control
  • Capable of running in stand-alone mode
功能框图
EVAL6235PD 订购信息
订购型号 产品状态 美金价格 数量 封装 包装形式 温度范围 材料声明
EVAL6235PD Active   1000
DATA BRIEF
描述 版本 大小
EVAL6235PD : DB1409: L6235 three-phase brushless DC motor driver demonstration board 1 1300KB
APPLICATION NOTES
描述 版本 大小
AN3360: 3.2 W LED power supply based on HVLED805 2 2873KB
AN3410: L6235 three-phase brushless DC motor driver demonstration board 1 1958B
BILL OF MATERIALS
描述 版本 大小
Bill of materials 1.0.0 7KB
SCHEMATIC PACKS
描述 版本 大小
Board schematic 1.0.0 34KB
PCB LAYOUTS
描述 版本 大小
PCB layout 1.0.0 226KB
