FLI30336 Single-chip enhanced LCD TV controller

The FLI30336 offers high integration for advanced applications of Picture-in-Picture (PIP) and Picture-by-Picture (PBP) with an integrated video decoder and a 3D comb filter. The FLI30336 can power up to 1080p/WUXGA displays with the proven Faroudja DCDi Cinema branded technology.

Special performance features such as the Faroudja DCDi Cinema video format converter, 10-bit performance in the device, and the Advanced Color Management (ACM-3D) provide exceptional video quality. This exclusive level of video quality technology only seen on Faroudja Home Theater Systems is now available in a single-chip solution.

The FLI30336 also comprises an integrated Analog Front-End (AFE) that includes triple ADCs and an integrated cross-point switch. The flexible AFE ensures simple PCB design with direct connections to TV tuners and input video connectors. In essence, the FLI30336 is the only device needed for a single LCD TV chassis supporting worldwide standards. For regional variations, only connector and firmware changes are required.

The integrated VBI dataslicer and decoder remove the need for external components resulting in significant cost reduction. The FLI30336 supports many worldwide VBI standards for applications of Teletext, Closed Captioning, V-Chip, and other VBI services.

The FLI30336 can be used in digital TV solutions requiring Faroudja DCDi Cinema video performance levels. An embedded microprocessor and a versatile OSD in a single device will facilitate rapid development of a reliable and attractive product. The FLI30336 utilizes the common Cortez family firmware for easy and effortless migration across different hardware platforms within this family.

技术特性

Integrated 3D video decoder
Flexible digital capture up to 165 MHz and analog capture up to 162 MHz
VBI signal processing including WST version 2.5 support
Flexible DDR memory interface
Faroudja® TrueLife™ video enhancer
Advanced Picture-in-Picture (PIP) features
Advanced Color Management (ACM-3D) and Adaptive Contrast Control (ACC)
On-chip microprocessor
Advanced bitmapped OSD controller
LCD overdrive
Embedded 10-bit dual-channel LVDS for 1080p and WUXGA panel support
Package: 416 PBGA

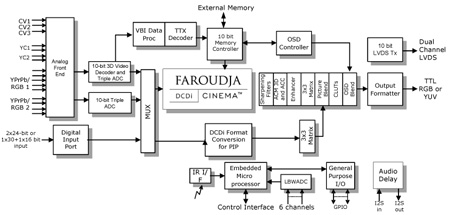

功能框图

FLI30336 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
FLI30336-AC	NRND			PBGA 416 35x35x2.46	Tray		FLI30336-AC
