FLI32652H Single-chip enhanced LCD TV controller

The FLI32652H is an innovative System-on-Chip (SoC) controller designed for flat panel display TVs, LCD TVs, and other emerging digital display applications.

The FLI32652H handles video and computer graphics inputs in virtually any format and resolution. The output port delivers unparalleled image quality and supports display resolutions up to WXGA. Its rich feature set, high level of integration. Its sophisticated technologies for color management, scaling, video processing, and audio processing make the FLI32652H the ideal solution for a high-quality, cost-effective, integrated TV solution.

The FLI32652H IC offers a high integration SoC solution for advanced analog TV dualchannel applications (e.g. PIP) and for TV products that require superior video and audio quality with extensive feature sets. The FLI32652H includes a flexible analog and digital front-end with a wide range of integrated components for different application needs as well as state-of-the-art dual channel video processing based on renowned Faroudja technologies.

The FLI32652H is the only device needed for a complete LCD TV solution chassis supporting worldwide video and audio standards where exceptional quality is required. For regional variations, only connector and firmware changes are needed

技术特性

Dual 10-bit triple ADCs with capture up to 165 MHz
Integrated 3D video decoder
Flexible digital and analog capture up to 165 MHz
Integrated HDMI 1.3 receiver
VBI slicer including WST version 2.5 support
Next generation true 10-bit Faroudja DCDi Cinema® Format processing
DDR2/DDR1 memory interface 16 bits wide
Faroudja® TrueLife™ video enhancer
Advanced Picture-in-Picture (PIP) features capabilities
Faroudja Real Color® processing
Embedded 10-bit single-channel LVDS for WXGA panel support
Multi-standard digital and analog audio decoder and post-processor
Package: 409 HSBGA

应用领域

LCD and PDP TV
DLP® , LCD, and LCOS front and rear projection

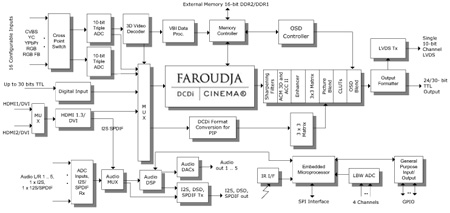

功能框图

FLI32652H 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
FLI32652H-BG	Active			PBGA 409 31x31x2.46	Tray		FLI32652H-BG

DATA BRIEF

描述	版本	大小
FLI32652H :DB0723: Single-chip enhanced TV controller	2	130KB
