FLI7560 Freeman Premier 2 smart 3DTV SoC with integrated 120 Hz FRC and Faroudja A/V processing

The FLI7560 is a revolutionary new iDTV SoC that integrates two highly successful, market-proven subsystems: STi710x digital/front-end processing and multi-format audio/video decoding from the STB market, and Faroudja video/back-end processing from the TV market. The FLI7560 is a high-performance, state-of-the-art SoC that can power DTT/cable/satellite/IPTV iDTV designs for worldwide deployment. From the software compatibility extending from the mature STi710x STAPI layer to the extensive video processing, tuning, and tools from Faroudja Labs, FLI7560 is an ideal solution for addressing the next generation of iDTV design requirements.

The FLI7560 is the latest in a family of scalable performance and software-compatible H.264 SoCs that address mainstream and performance segments of the iDTV market. Notably, it is a single-chip, 120 Hz TV solution incorporating Motion-Corrected Temporal Interpolation (MCTi) Faroudja technology. It utilizes industry-leading vector estimation to interpolate in-between frames to correct film motion judder and panel motion blurring. Combining the artistic elements of film with the linear motion of video, FLI7560 provides audiences with a uniquely enjoyable viewing experience.

FLI7560 implements the latest generation of Faroudja Video Optimized technologies, which allow a high degree of customization for TV OEMs. Key technology improvements in this area include 14-bit color and contrast processing, upgraded sharpness, upgraded temporal noise reduction, and new MPEG noise reduction. Furthermore, FLI7560 supports all connectivity requirements to 3D sources and all mandatory 3D formats defined in the HDMI 1.4b specification.

Along with its high performance CPU, the FLI7560 is equipped with 256 Kbyte of level 2 cache to deliver the smoothest multi-instance ConnectedTV intuitive user experience. In addition, with its A/V decode, graphics engine, motion judder reduction and motion blur removal features, and extensive network interface capability, FLI7560 enables 3DTVs to deliver rich applications for convenient access to multimedia content, both from within the home, as well as from the web

技术特性

ST231 @ 450 MHz for advanced HD video decoding (H.264/VC-1/MPEG2/…) --> Worldwide DTT broadcast video standards
Dual ST231 @ 450 MHz for advanced multi-channel audio decoding (MPEG-1/2, MP3, WMA, Dolby® Digital/Dolby Digital+, AAC/AAC+/…) --> Worldwide DTT broadcast audio standards
Dual ST40 CPU @ 450 MHz (delivers 1600+ DMIPS) runs Linux and OS21 --> One CPU fully dedicated to application and user interface
256 Kbyte level 2 cache --> For high performance Internet TV applications
Faroudja® video processing for Main Video --> Vivid picture quality for the consumer
Full support for HDMI 1.4b mandatory 3DTV input formats
Horizontal/vertical image flip support all panel types
Faroudja MCTi™ Frame Rate Conversion (FRC) for 2D and 3D content (film and video)
Higher performance for SMART TV with more responsive navigation
3DTV support 120 Hz (line-interleaved) and 60L60R (frame-sequential)
Integrates auto 2D to 3D video/text conversion and depth control
Worldwide analog audio demodulator
14-bit Advanced Color Management (3D) and Contrast processing --> Ultimate video quality for OEMs and consumers
High-quality graphics for rich, easy-to-use GUI
Advanced security supporting embedded CA, CI/CI+ and DRM apps; copy protection support including HDCP, AES/DES/TDES, RoviTM
48-bit (3 x 16 or 1 x 16 + 1 x 32) DDR2/DDR3 1066 Mbps DRAM I/F --> Performance and flexibility with DRAM ICs
Quad high-speed 10-bit LVDS outputs --> Convenient connectivity to panel TCON
Board Support Package (BSP) API accelerates time to market

应用领域

Connected, high-performance, and mainstream iDTVs with support for 120 Hz 3DTVs with MCTi
Multi-region, single footprint for DVB/ATSC/DTMB/ISDB

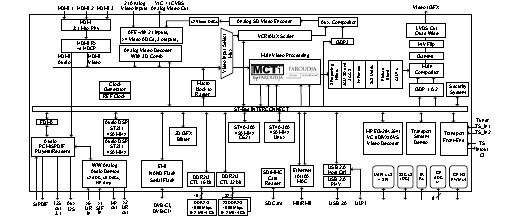

功能框图

FLI7560 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
FLI7560-ZAAE	Target			PBGA 956 35x35x2.3	Tray		FLI7560-ZAAE
FLI7560-AAA	Preview			PBGA 956 35x35x2.3	Tray		FLI7560-AAA
FLI7560-ZAA	Preview			PBGA 956 35x35x2.3	Tray		FLI7560-ZAA
FLI7560-HAAE	Target			PBGA 956 35x35x2.3	Tray		FLI7560-HAAE
FLI7560-AAB	Preview			PBGA 956 35x35x2.3	Tray		FLI7560-AAB
FLI7560-GAA	Preview			PBGA 956 35x35x2.3	Tray		FLI7560-GAA
FLI7560-TAAE	Preview			PBGA 956 35x35x2.3	Tray		FLI7560-TAAE
FLI7560	Proposal						FLI7560
FLI7560-HAB	Preview			PBGA 956 35x35x2.3	Tray		FLI7560-HAB
FLI7560-GAAE	Preview			PBGA 956 35x35x2.3	Tray		FLI7560-GAAE

DATA BRIEF

描述	版本	大小
FLI7560 :DB1740: Freeman Premier 2 - Smart 3DTV SoC integrated 120 Hz FRC + Faroudja A/V processing	1	169KB
