FLI8538 Single-chip enhanced LCD TV controller

The FLI8538 offers high integration for advanced applications of Picture-in-Picture (PIP) and Picture-by-Picture (PBP) with an integrated video decoder and a 3D comb filter. The FLI8538 can power up to 1080p displays with the proven DCDi Cinema technology Special performance features such as the Faroudja DCDi Cinema video format converter, 10-bit performance in the device, and the Advanced Color Management (3D) provide exceptional video quality. The video quality level that was exclusive to Faroudja® Home

Theater Systems is now available in a single-chip solution.

The FLI8538 also comprises an integrated Analog Front End (AFE) that includes triple ADCs and a cross-point switch. The flexible AFE ensures simple PCB design with direct connections to TV tuners and input video connectors. Thus, the FLI8538, for a single LCD TV chassis, is able to support worldwide standards. The only requirements for regional variations are connectors and firmware changes.

The integrated VBI dataslicer and decoder eliminates the need for external components resulting in significant cost reduction. The FLI8538 supports many worldwide VBI standards for applications of Teletext, Closed Captioning, V-Chip, and other VBI services.

The FLI8538 can also be used as part of a digital TV solution that requires the proven Faroudja DCDi Cinema video performance. An embedded microprocessor and a versatile OSD in a single device will facilitate rapid development of a reliable and attractive product. The FLI8538 utilizes the common Cortez family firmware for easy migration when moving across different hardware platforms within this family.

技术特性

Integrated 3D video decoder
Flexible digital and analog capture up to 150 MHz
VBI signal processing including WST version 2.5 support
Flexible DDR memory interface
Faroudja® TrueLife™ video enhancer
Advanced Picture-in-Picture (PIP) features
Advanced Color Management (ACM-3D) and Adaptive Contrast Control (ACC)
On-chip microprocessor
Advanced bitmapped OSD controller
LCD overdrive
Embedded 10-bit dual-channel LVDS for 1080p and WUXGA panel support
Package: 416 PBGA

应用领域

LCD and PDP TV
DLP®, LCD, and LCOS front and rear projection

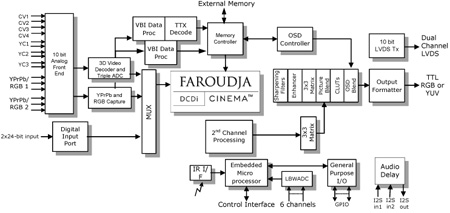

功能框图

FLI8538 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
FLI8538-LF-BE	NRND			PBGA 416 35x35x2.46	Tray		FLI8538-LF-BE

DATA BRIEF

描述	版本	大小
FLI8538 :Single-chip enhanced LCD TV controller	1	119KB
