GM5626 Dual input LCD controller for entry-level SXGA/WXGA applications

Genesis GM5621 and GM5626 are all-in-one dual input LCD monitor controllers supporting resolutions up to SXGA/WXGA, available in a very low pin count package. GM5621/5626 leverage Genesis patented advanced image-processing technology, as well as a proven integrated ADC/PLL and an Ultra-Reliable DVI compliant digital receiver to deliver a highquality solution for mainstream analog and dual input monitors. GM5621/5626 offer new Instant Auto technology, which provides fast and accurate image alignment for both static and moving images of the analog input signal. GM5621 includes an on-chip, industry standard, dual channel LVDS transmitter and a TCON, and GM5626 includes a dual channel RSDS transmitter for direct interfacing of commercially available LVDS/RSDS LCD panel modules.

In addition, GM5621/5626 include an integrated x86 OCM with SPI compatible interface, a multicolor proportional font OSD engine, a programmable coefficient scaling engine, dual channel Schmitt and Reset circuitry. Along with high quality and reliability, GM5621/5626 also provide a very low cost system design by reducing the number of components and the reduction in the board size.

GM2621 is a pin-compatible analog derivative product with integrated ADC/PLL, but no DVI receiver.

技术特性

Zoom (from VGA) and shrink (from UXGA) scaling
Triple-channel (8-bit) ADC and PLL
Ultra-Reliable DVI® receiver (165 MHz)- DVI 1.0-compliant
Dual channel RSDS transmitter and TCON (GM5626 only)
Dual channel LVDS transmitter
Intel x86 compatible microcontroller with external SPI ROM interface
Versatile OSD engine meets PC OEM specs
All system clocks synthesized from a single external crystal
Digital color controls and sRGB compliant
10-bit panel gamma correction and high quality dithering for 8-bit and 6-bit panel interface
DDC controller for host interface purposes
Low bandwidth ADC for keypad interface and cable detection
Two Pulse Width Modulation (PWM) signals for backlight and volume control
Internal test pattern generator for factory test purposes
Energy Spectrum Management® (ESM®)
Instant Auto™ Image Adjustment

应用领域

Mainstream analog and dual-input XGA/SXGA/WXGA LCD monitors

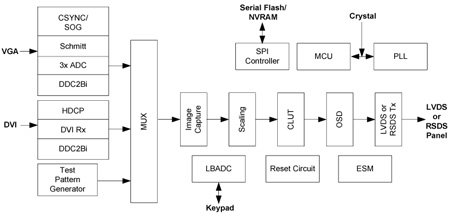

功能框图

GM5626 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
GM5626-LF-BC	NRND			PQFP 128 14x20x2.7	Tray		GM5626-LF-BC
GM5626-LF-AA	NRND			PQFP 128 14x20x2.7	Tray		GM5626-LF-AA

DATA BRIEF

描述	版本	大小
GM5626 :Dual input LCD controller for entry level applications	1	121KB
