GM5862H LCD monitor controllers with RTC up to WUXGA

The GM58xx family of controllers are highly integrated mixed signal LCD controllers with built-in panel RTC for LCD panels with slow grey-to-grey response time up to WUXGA resolutions.

The integrated RTC only requires a single 1Mx16 SDR SDRAM to support a UXGA panel.

In most cases, the grey-to-grey response time can be reduced as much as half of the native grey-to-grey response time. This depends on the characteristics of the target LCD panel.

The GM58xx monitor controller family has integrated proven ADC/PLLs and an Ultra- Reliable DVI or HDMI 1.1 compatible digital receiver with optional FRC to ensure proven PC graphics compatibility. The optional FRC function may need more external memory to support up to SXGA 75 Hz.

The GM58xx family includes the following products:

GM5862 supports up to 1920 x 1200 resolutions with DVI

GM5862H supports up to 1920 x 1200 resolutions with DVI and HDCP

GM5822H supports up to 1680 x 1050 resolutions with DVI and HDCP

GM5868H supports up to 1920 x 1200 resolutions with HDMI and HDCP

GM5828H supports up to 1680 x 1050 resolutions with HDMI and HDCP

技术特性

Triple ADC and PLL up to 205 MHz
Integrated Ultra-Reliable DVI® receiver up to 165 MHz (GM5862, GM5862H, and GM5822H)
Integrated HDMI 1.1 receiver up to 165 MHz (GM5868H and GM5828H)
HDCP supported with GM58xxH versions
ITU656 video input
ITU601 (16-bit) video input
Response Time Compensation (RTC) with single 1Mx16 SDR SDRAM up to UXGA panels
Optional Frame Rate Conversion (FRC) using two 1Mx16 SDR SDRAM up to SXGA 75 Hz
Panoramic scaling for wide output resolutions
TV color controls using ACC and ACM-3D
Versatile OSD controller for high quality bitmap-like TV OSD
Embedded x86 microprocessor with external SPI Flash ROM
Dual LVDS transmitter for direct interconnect to LCD panels up to WUXGA 60 Hz
Package: 256-pin PQFP

应用领域

LCD monitors with RTC up to WUXGA resolutions

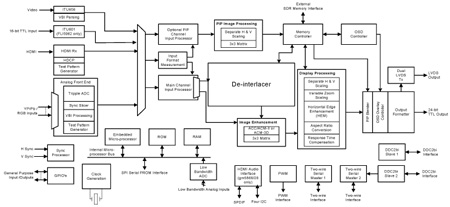

功能框图

GM5862H 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
GM5862H-LF-AA	NRND			PQFP 256 28x28x3.4	Tray		GM5862H-LF-AA

DATA BRIEF

描述	版本	大小
GM5862H :DB0684: LCD monitor controllers with RTC up to WUXGA	2	103KB
