KF25B VERY LOW DROP VOLTAGE REGULATOR WITH INHIBIT

The KFxx series are very low drop regulators available in SO-8 package and in a wide range of output voltages.

The very low drop voltage (0.4V) and the very low quiescent current make them particularly suitable for low noise, low power applications and specially in battery powered systems.

A Shutdown logic control function is available (pin 5, TTL compatible). This means that when the device is used as a local regulator, it is possible to put a part of the board in standby, decreasing the total power consumption. It requires only a 2.2 µF capacitor for stability allowing space and cost saving

技术特性

Very low dropout voltage (0.4V)
Very low quiescent current (typ. 50 µA in OFF MODE, 500 µA in ON MODE)
Output current up to 500 mA
Logic-controlled electronic shutdown
Output voltages of 1.5; 2.5; 3.3; 4; 5; 8 V
Internal current and thermal limit
Only 2.2 µF for stability
Available in ± 2% accuracy at 25 °C
Supply voltage rejection: 70 db (typ.)
Temperature range: -40 to 125 °C

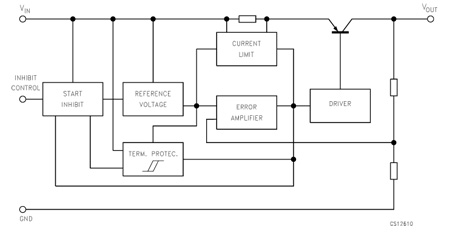

功能框图

KF25B 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
KF25BDT-TR	Active	0.7938	1000	DPAK	Tape And Reel	-40 °C-125 °C	KF25BDT-TR
KF25BD-TR	Active	0.78	1000	SO-8	Tape And Reel	-40 °C-125 °C	KF25BD-TR

DATASHEET

描述	版本	大小
KF25B : Very low drop voltage regulators with inhibit	11	739KB
