L4940XX85 Very low drop 1.5 A regulator

The L4940 series of three terminal positive regulators is available in TO-220, TO-220FP and D²PAK packages and with several fixed output voltages, making it useful in a wide range of industrial and consumer applications. Thanks to its very low input/output voltage drop, these devices are particularly suitable for batteries powered equipment, reducing consumption and prolonging battery life. Each type employs internal current limiting, antisaturation circuit, thermal shut-down and safe area protection

技术特性

Precise 5, 8.5, 10, 12 V outputs
Low dropout voltage (450 mV typ. at 1 A)
Very low quiescent current
Thermal shutdown
Short circuit protection
Reverse polarity protection

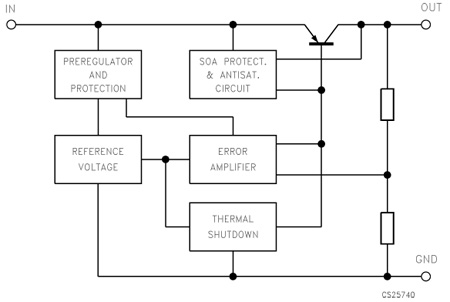

功能框图

L4940XX85 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
L4940V85	Active		1000	TO-220	Tube	-40 °C-150 °C	L4940V85

DATASHEET

描述	版本	大小
L4940XX85 : Very low drop 1.5 A regulator	12	1547KB
