L6386AD High-voltage high and low side driver
The L6386AD is an high-voltage device, manufactured with the BCD "OFF-LINE" technology. It has a driver structure that enables to drive independent referenced Channel Power MOS or IGBT. The high-side (floating) section is enabled to work with voltage rail up to 600 V. The Logic Inputs are CMOS/TTL compatible for ease of interfacing with controlling devices.
技术特性
- High voltage rail up to 600 V
- dV/dt immunity ±50 V/nsec in full temperature range
- Driver current capability:
- Switching times 50/30 nsec rise/fall with 1nF load
- CMOS/TTL Schmitt trigger inputs with hysteresis and pull down
- Under voltage lock out on lower and upper driving section
- Integrated bootstrap diode
- Outputs in phase with inputs
|

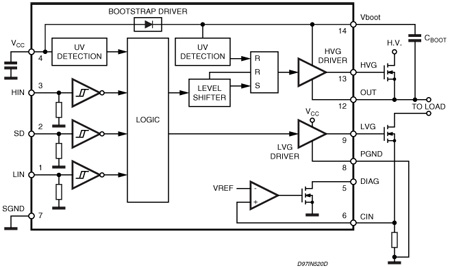

功能框图
 |
L6386AD 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| L6386ADTR |
Active |
0.918 |
1000 |
SO-14 |
Tape And Reel |
|
L6386ADTR |
| L6386AD |
Active |
0.918 |
1000 |
SO-14 |
Tube |
|
L6386AD |
DATASHEET
| 下载 |
描述 |
版本 |
大小 |
| L6386AD |
DS5900: High-voltage high and low side driver |
1 |
202KB |
