L6388 High-Voltage Half Bridge Driver
The L6388 is an high-voltage device, manufactured with the BCD"OFF-LINE" technology. It has an Half - Bridge Driver structure that enables to drive N Channel Power MOS or IGBT. The Upper (Floating) Section is enabled to work with voltage Rail up to 600V. The Logic Inputs are CMOS/TTL compatible for ease of interfacing with controlling devices. Matched delays between Lower and Upper Section simplify high frequency operation. Dead time setting can be readily accomplished by means of an external resistor.
技术特性
- HIGH VOLTAGE RAIL UP TO 600V
- dV/dt IMMUNITY ±50V/nsec IN FULL TEMPERATURE RANGE
- DRIVER CURRENT CAPABILITY:
- SWITCHING TIMES 50/30 nsec RISE/FALL WITH 1nF LOAD
- CMOS/TTL SCHMITT TRIGGER INPUTS WITH HYSTERESIS AND PULL DOWN
- SHUT DOWN INPUT
- DEAD TIME SETTING
- UNDER VOLTAGE LOCK OUT
- INTEGRATED BOOTSTRAP DIODE
- CLAMPING ON VCC
- SO8/MINIDIP PACKAGES
|

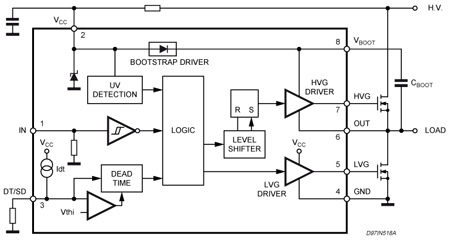

功能框图
 |
